Every week, shop owners call us asking the same question: “What does a dust collection system actually cost?”

And every week, we hear the frustration in their voice when contractors dodge the question with “it depends” and never give real numbers.

So let’s cut through the fluff.

We’ve designed and installed dust collection systems across the Southwest for years. We’ve done everything from $8,000 portable setups for small welding shops to $1.2 million facility-wide systems for pharmaceutical manufacturers. We know exactly what a dust collection system costs because we write the quotes.

Here’s what you’re actually going to pay, what you’re getting for your money, and how to know if a contractor is ripping you off or cutting corners.

No sales pitch. No “contact us for pricing.” Just the truth.

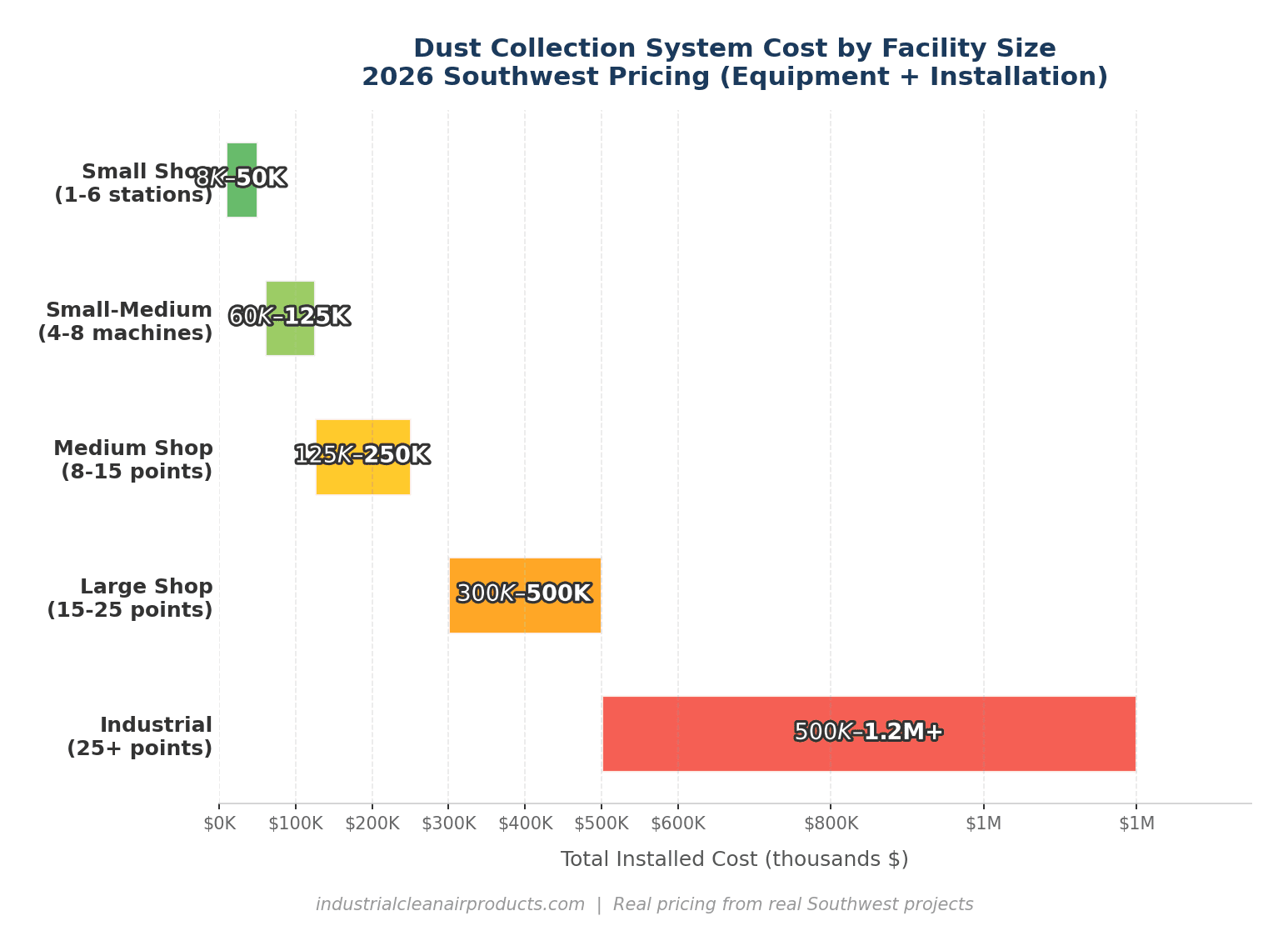

Dust Collection System Cost in 2026: Real Southwest Pricing

Here’s what shops are paying for complete systems (equipment + installation) right now in Arizona, California, Nevada, New Mexico, and Utah:

Small Shops: $8,000 – $50,000

• 1-6 portable extractors or downdraft tables
• Plug in and start working
• Perfect for 1-5 employees
• No ductwork, no permits, no complexity

Small-Medium Shops: $60,000 – $125,000

• Basic central cartridge collector
• Ductwork to 4-8 machines
• Good for 6-15 employees
• Gets you compliant without breaking the bank

Medium Shops: $125,000 – $250,000

• Central baghouse or larger cartridge system
• Ducting to 8-15 points
• Includes basic explosion protection
• Typical for 15-30 employees

Large Shops: $300,000 – $500,000

• Large collectors (15,000-25,000 CFM)
• Complex ductwork networks
• Full explosion protection (suppression or isolation)
• Facilities with 30-50 employees

Very Large/Industrial Facilities: $500,000 – $1,200,000+

• Multiple collector systems, often 25,000+ CFM combined
• Multi-building or campus-wide networks
• Advanced explosion protection with redundancy
• Pharmaceutical-grade stainless construction
• Aerospace, pharmaceutical, food manufacturing
• 50+ employees or high-hazard operations

Those are real numbers from real projects we’ve done in the last 18 months.

But here’s what nobody tells you: the equipment cost is only part of the story.

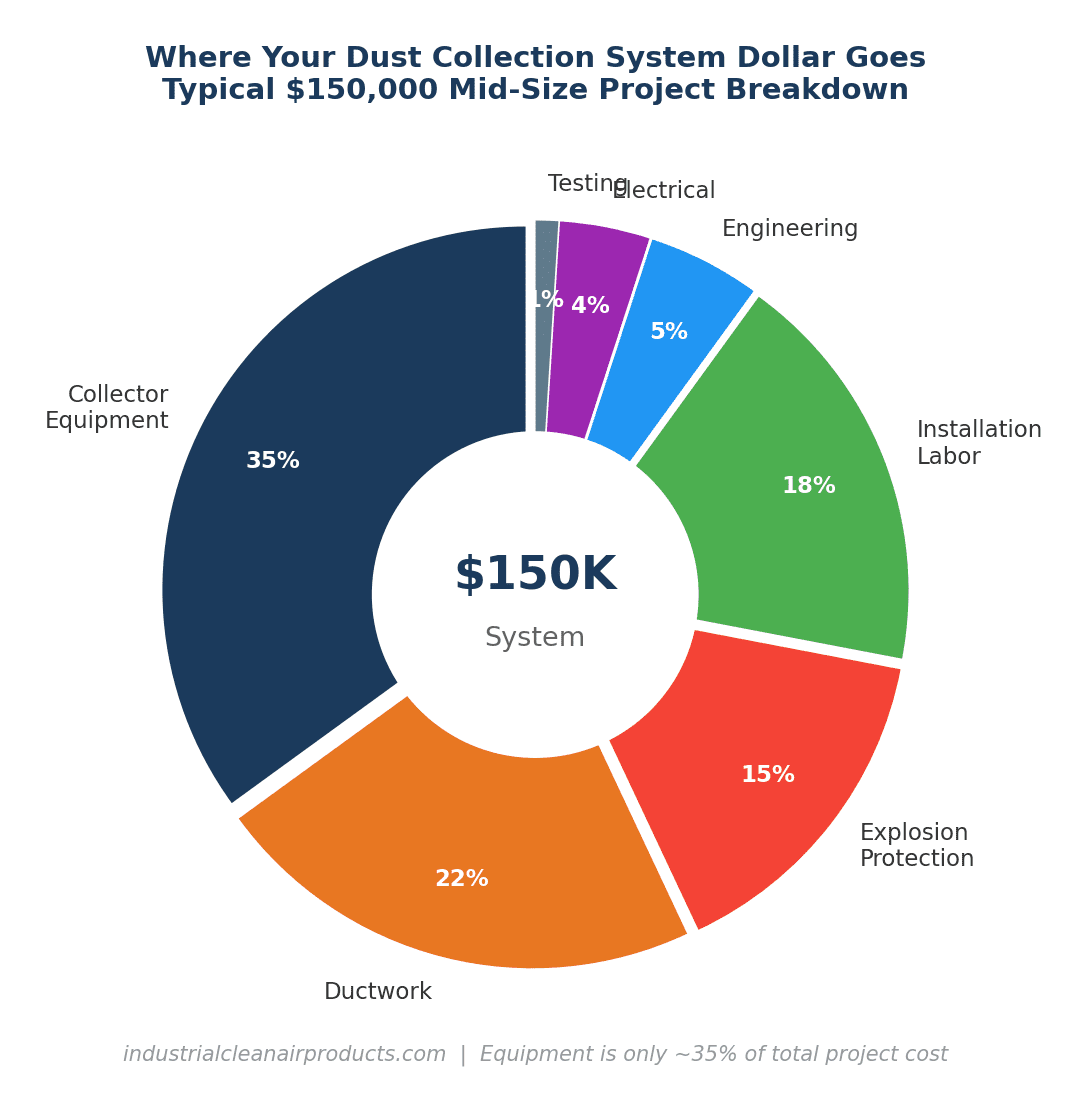

Dust Collection System Cost Breakdown: Where Your Money Goes

When you get a quote for $150,000, what are you actually buying? Let’s break it down piece by piece so you know exactly where every dollar goes.

1. The Collector Itself: $5,000 – $200,000

This is the big box with filters that everyone thinks of as “the dust collector.” However, it’s typically only about 35% of your total dust collection system cost. (Not sure which type you need? Read our baghouse vs. cartridge dust collector comparison.)

Portable Units: $5,000 – $15,000 each

Single-operator stations for welding or grinding. Plug into a wall outlet. Move them around as needed. These work well until you have 5-6 people; then you need something larger.

Small Cartridge Collectors: $15,000 – $35,000

2,000-6,000 CFM. Handles 3-6 machines. Indoor installation. This is the sweet spot for a lot of small shops.

Medium Systems: $35,000 – $125,000

6,000-15,000 CFM. Serves 8-12 machines. Can go outside or inside. Includes the hopper and rotary valve for dumping dust.

Large Industrial: $125,000 – $400,000+

15,000-50,000+ CFM. Whole facility or major department. Industrial-grade construction that’ll run 20+ years.

Pharmaceutical/Food Grade: $150,000 – $200,000+

All stainless steel (no rust, easy to clean). FDA/cGMP compliant. HEPA filtration. Explosion-proof electrical. These cost 3-4x more than carbon steel because the materials and fabrication requirements are insane.

What makes one collector cost 10x more than another?

• CFM capacity (bigger fan, bigger housing, more filters)
• Filter type (80/20 blend vs. nanofiber)
• Materials (carbon steel vs. stainless vs. special coatings)
• Explosion-rated construction (thicker walls, reinforced seams)
• Indoor vs. outdoor (return air vs. exhaust — return air to building?)

2. Ductwork: $8,000 – $200,000 (Often More Than The Collector)

This is where contractors make or break your system—and where we see the most corner-cutting.

Basic Ductwork: $8,000 – $25,000

4-8 machines, short runs, simple layout. Standard solid wall pipe. Nothing fancy.

Complex Ductwork: $25,000 – $80,000

8-15 machines, long runs, multiple elevations. You’re paying for:

• Custom fabrication (every shop is different)
• Proper sizing (8″ duct costs more than 6″, but you need 8″ for proper velocity)
• Structural supports rated for the weight
• Building penetrations (cutting through walls/roof)
• Labor

Facility-Wide: $80,000 – $150,000

15-25 capture points across a big shop. Blast gates, dampers, zone controls. Extensive structural steel.

Multi-Building Systems: $150,000 – $200,000+

Multiple buildings connected together. Underground runs or overhead between buildings. Mix of materials (stainless in food areas, carbon steel in metal fab areas). Automated controls.

Here’s the truth about ductwork:

We see shops try to save $5,000 by running 6″ duct when they need 8″. Or using Spiral Duct vs Smooth Wall Duct. Know what happens? The velocity drops below 4,500 FPM (what wood dust needs to stay moving), dust settles in the duct, and now you’ve got a fire/explosion hazard.

Then they call us to fix it, and the fix costs $18,000 because we’re retrofitting instead of doing it right the first time.

Ductwork isn’t where you save money. It’s where the system either works or doesn’t.

3. Explosion Protection: $0 – $200,000

If you’re handling wood, metal, food, or pharmaceutical powders, this isn’t optional. NFPA 660 requires it. Let’s talk real numbers.

No Protection Needed: $0

Non-combustible dust only. Mild steel welding fume. General nuisance dust. You’re lucky—skip this section.

Basic Explosion Venting: $8,000 – $25,000

Relief panels on the collector that blow open during an explosion and vent pressure outside. Works for wood dust and many organic materials (Kst under 200). Cheapest option.

Flameless Venting: $25,000 – $60,000

Vents the explosion but contains the flame so you can install the collector indoors. Popular when you don’t have an exterior wall nearby.

Chemical Suppression: $60,000 – $120,000

Detects an explosion starting (we’re talking milliseconds), shoots suppressant to stop it before it blows. Required for aluminum, magnesium, and other high-Kst dusts (over 200).

Plus you’re paying $3,000-$5,000/year for inspection and recharging the suppressant bottles.

Isolation Systems: $40,000 – $100,000

Fast-acting valves that slam shut to prevent the explosion from traveling through your ductwork to other parts of the facility. Required for duct coming in and out of the building, or when a collector is set inside. (The explosion doesn’t travel to the equipment and to your staff.)

Complete Protection Package: $150,000 – $200,000+

Suppression + isolation + continuous monitoring + redundant systems. Pharmaceutical facilities, aerospace composites, high-volume aluminum. Not cheap, but it’s what keeps the building from leveling.

Can you skip explosion protection to save money?

No. Plain and simple we can’t in good conscience do that.

We’ve had shops ask us to “leave it off for now” and add it later. Here’s what happens: They fail inspection, insurance won’t cover them, and now they’re paying us to retrofit explosion protection—which costs 50% more than building it in from the start. (If you’ve already failed a dust hazard analysis, here’s how to fix it.)

According to Dust Safety Science, between 2008-2020 there were 119 combustible dust incidents in the U.S. that killed 45 people and injured 369. Most of those facilities had dust collectors. They just didn’t have proper explosion protection.

Don’t be that shop.

4. Engineering & Design: $3,000 – $35,000

This is where cheap contractors cut corners, and it comes back to bite you.

No Engineering (“We’ll eyeball it”): $0

Run. This contractor is guessing. Your system won’t work.

Basic Design: $3,000 – $8,000

• CFM calculations for your machines
• Ductwork sizing and layout
• Equipment specs
• Simple installation drawings

Full Engineering: $8,000 – $18,000

• Dust Hazard Analysis (DHA) with lab testing — see what a DHA actually costs
• Explosion protection calculations
• Permit-ready documentation

Complex Projects: $18,000 – $35,000+

• CFD (computational fluid dynamics) modeling
• Multiple zones, different dust types
• Integration with building controls
• Structural engineering coordination

Here’s why this matters: A contractor who “eyeballs” your duct sizes might save you $8,000 on engineering. But when the system doesn’t pull enough air and you fail inspection, you’re spending $25,000-$50,000 to fix it.

We did the math once: Every dollar we spend on proper engineering saves clients $3-$5 in avoided corrections and change orders.

5. Installation Labor: $15,000 – $150,000

Labor is typically 25-40% of your total dust collection system cost. Here’s what you’re paying for:

• Rigging and setting the collector (these things weigh 5,000-20,000+ lbs)
• Fabricating and hanging all the ductwork
• Structural supports and seismic anchoring
• Cutting through walls and roof (building penetrations)
• Startup, testing, and commissioning

What makes installation expensive?

• Roof-mounted collectors cost more than ground-mounted (crane rental, roof reinforcement)
• 30-foot ceilings cost more than 15-foot (more ladder time, more structural steel)
• Tight spaces or active production (working around your schedule)
• Weekend or night work to avoid downtime
• Multi-story facilities or mezzanines

We’ve done installs for as little as $12,000 (simple portable units) and as much as $180,000 (pharmaceutical facility, all stainless, working nights and weekends to avoid production shutdown).

6. Electrical & Controls: $5,000 – $50,000

Basic: $5,000 – $12,000

Power to the collector, simple on/off switch, maybe a timer. That’s it.

Automated: $12,000 – $40,000

• VFD (variable frequency drive) saves 30-50% on energy
• Automatic blast gates (open when machine runs, close when it stops)
• Differential pressure monitoring (tells you when filters need changing)
• Machine interlock (collector won’t run unless machine is on)

Advanced: $40,000 – $75,000+

• PLC integration with your facility controls
• Remote monitoring (get alerts on your phone)
• Data logging for compliance documentation
• Multi-zone control for complex systems

Is automation worth it? On a $150,000 system, adding $15,000 for a VFD and automated controls pays for itself in 3-4 years just from energy savings. Plus you’re not running the collector 24/7 when nobody’s working.

7. Testing & Commissioning: $2,000 – $10,000

This is the proof your system actually works:

• Differential pressure testing across filters
• Capture velocity at every hood
• Transport velocity in the ductwork
• Explosion vent calculations verified
• Before/after air quality testing
• Final documentation for OSHA compliance

Contractors who skip testing? They’re gambling that nobody checks their work. When OSHA or your insurance company shows up asking for commissioning reports, you’re screwed.

We include testing in every quote over $50,000 because it’s not optional if you want to stay compliant.

Dust Collection System Cost Over 10 Years: What Nobody Tells You

The purchase price is just the start. Here’s what you’ll actually spend over a decade—and why total cost of ownership matters more than the sticker price.

Annual Operating Costs

Energy: $2,000 – $35,000/year

A 15,000 CFM collector running 10 hours/day, 5 days/week costs about $8,000-$12,000/year in electricity (at $0.12/kWh Southwest average).

Add a VFD and automated controls? Cut that by 35-40%. That’s $3,000-$5,000 back in your pocket every year.

Filter Replacements: $1,500 – $20,000/year

• Cartridge filters last 6-18 months ($150-$400 each, you might have 12-40 of them)
• Baghouse bags last 2-4 years ($50-$150 each, could be 50-200 bags)
• HEPA filters last 1-2 years ($300-$800 each)

The replacement frequency depends on your dust type and how much you’re generating. Wood dust shops replace filters more often than welding shops.

Maintenance: $1,000 – $10,000/year

• Pulse valves wear out (replacement parts)
• Motors and bearings need service
• Rotary valves need seals replaced
• Ductwork needs professional cleaning (yes, even with a collector)

Most shops do basic maintenance themselves and hire us once a year for a full inspection and service. That runs $1,500-$3,500 depending on system size. (Here’s our full guide on dust collection system maintenance.)

Dust Disposal: $500 – $8,000/year

• Wood dust? Often free—farmers take it for animal bedding
• Metal dust? Recyclers might pay you for aluminum or pay scrap rate
• Combustible dust? Special handling, $1,000-$3,000/year
• Hazardous dust (hexavalent chromium, pharma)? $5,000-$8,000/year or more

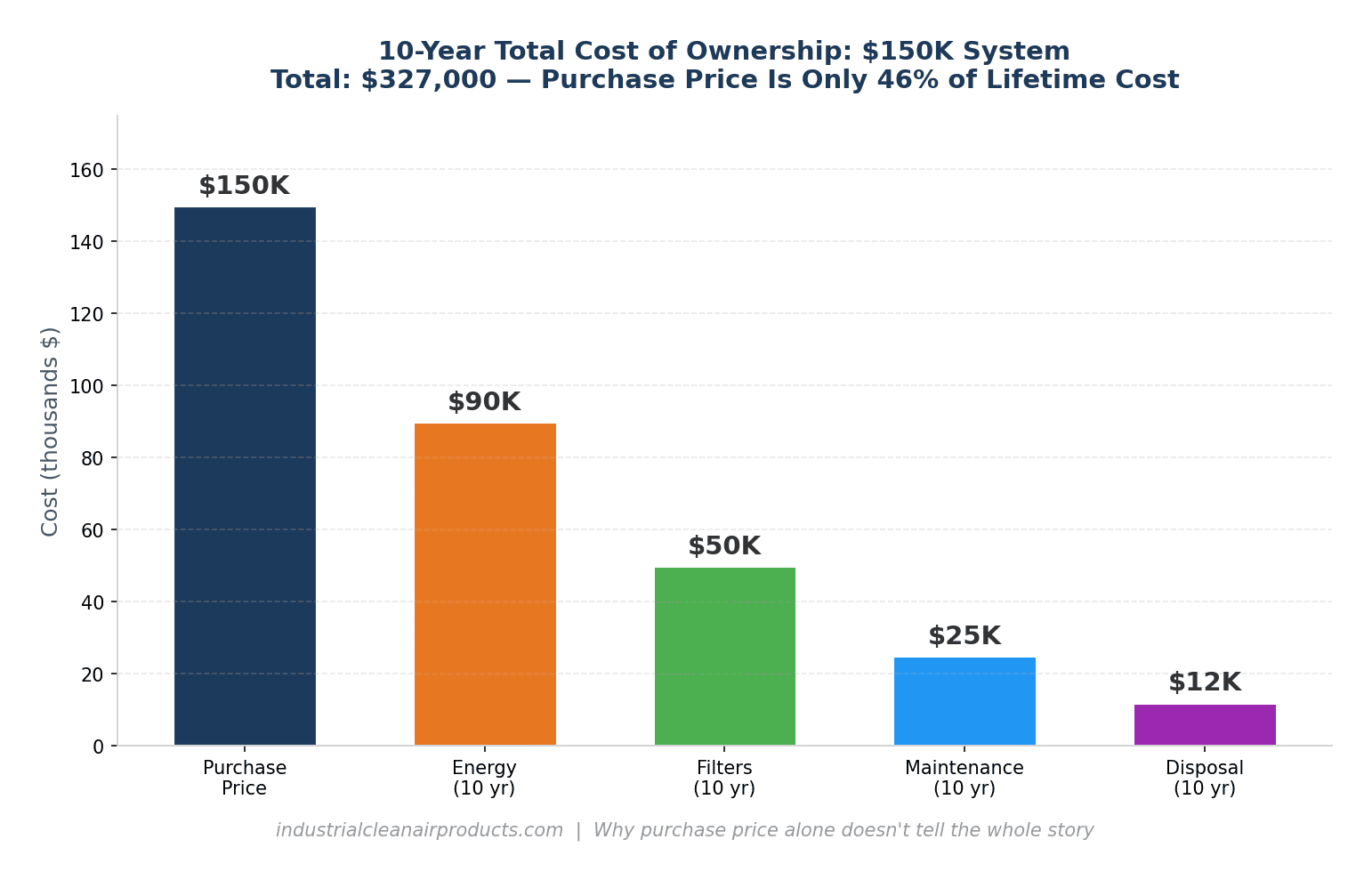

Real Example: 10-Year Cost on a $150,000 System

Year 0 (Purchase): $150,000

Years 1-10 (Operating):

• Energy: $90,000 (10 years × $9,000/year)
• Filters: $50,000 (10 years × $5,000/year)
• Maintenance: $25,000 (10 years × $2,500/year)
• Disposal: $12,000 (10 years × $1,200/year)

Total 10-Year Cost: $327,000

That’s why we push energy-efficient designs and quality filters. A system that costs $10,000 more upfront but saves $2,000/year in energy pays for itself in 5 years—then keeps saving you money for the next 15-20 years.

When You DON’T Need to Spend a Lot

Here’s something most contractors won’t tell you: not every shop needs a $200,000 system.

We turn away 30-40% of the people who contact us because they don’t need what we specialize in. Here’s when to save your money:

Go Small ($8,000 – $50,000) When:

• You have 1-6 work areas
• Production is intermittent (few hours a day, not every day)
• You’re doing non-combustible work (mild steel welding)
• Facility is under 5,000 sq ft
• You don’t have combustible dust

Best option: Buy 3-6 portable extractors. Plug them in, move them around, done. Don’t overthink it.

Go Mid-Range ($60,000 – $250,000) When:

• 7-13 work areas
• Daily production with consistent dust
• Combustible dust present
• 5,000-10,000 sq ft facility
• NFPA 660 compliance required

Best option: Central cartridge or baghouse with basic explosion venting. This is the sweet spot for most manufacturing shops.

Go Premium ($300,000 – $500,000) When:

• 14-22 work areas
• Complex ductwork required
• Multiple shifts, high production volume
• Large facility, multiple departments
• Insurance or customer audits require documentation

Best option: Industrial-grade system with full explosion protection, automated controls, comprehensive monitoring.

Go Industrial ($500,000 – $1,200,000+) When:

• 24+ work areas
• High-hazard materials (aluminum, magnesium, pharmaceutical powders)
• FDA/pharmaceutical requirements (all stainless, validation)
• Multi-building campus needing interconnected systems
• Aerospace, defense, pharmaceutical manufacturing
• Need redundancy for 24/7 operations
• Multiple dust types requiring separate systems

Best option: Multiple collectors, advanced suppression, full automation, backup systems. This is where we do our best work—but it’s not for everyone.

What Pushes Dust Collection System Cost Over $700,000?

People ask us all the time: “Why would anyone spend a million dollars on dust collection?”

Fair question. Here’s what drives projects into seven figures:

Multiple Buildings: Food processing plant with three production buildings, each making different products with allergen concerns. Each needs its own isolated system. We did one for $925,000—three separate 20,000 CFM collectors with chemical suppression and stainless construction.

Pharmaceutical Requirements: All stainless steel (no painted surfaces, everything weldable and cleanable). cGMP validation. Explosion-proof electrical. HEPA + carbon filtration. The materials alone cost 3-4x a standard system. A 10,000 CFM pharma system costs what a 30,000 CFM industrial system costs.

Extreme Hazard + Complexity: Aerospace composites facility grinding carbon fiber and machining aluminum in the same building. Required two separate systems (can’t mix those dusts), chemical suppression on both, isolation valves, continuous monitoring. $1.1 million for 40,000 CFM combined capacity. Could we have done it cheaper? Not while keeping the building standing.

Retrofit Nightmares: Operating 60,000 sq ft facility, 25-foot ceilings, mezzanines, production runs 24/6, zero downtime allowed. Engineering and installation complexity alone added $250,000 to what it would’ve cost in a new building.

Specialized Filtration: Nanomaterial research facility needing HEPA + carbon + negative pressure containment. Filter system alone was $180,000. Total project: $780,000 for 8,000 CFM. Insane cost per CFM, but that’s what certified containment costs.

These aren’t inflated prices. They’re what it costs when the work is genuinely complex and the stakes are high.

How to Spot a Contractor Who’s Ripping You Off

We see bad quotes all the time. Here’s what to watch for:

Red Flag #1: No breakdown, just “installed price”

If they won’t itemize equipment, ductwork, electrical, labor, and testing separately, they’re hiding something. Probably planning change orders.

Red Flag #2: Price is 35%+ below everyone else

They’re either:

• Undersizing everything
• Skipping explosion protection
• Using the cheapest possible materials
• Not including engineering or testing
• Planning to hit you with change orders

We’ve seen quotes for $85,000 on projects that actually cost $165,000 to do right. Guess who pays the extra $80,000? You do, halfway through the job.

Red Flag #3: No DHA, no testing mentioned

For combustible dust, these aren’t optional extras. They’re required by NFPA 660. If they’re not in the quote, they’re not budgeted.

Red Flag #4: “Includes all necessary explosion protection”

How do they know without testing your dust? Kst values vary. Generic statements mean they’re guessing—and you’ll pay when they guess wrong.

Red Flag #5: Timeline seems too fast

“We can install this in two weeks.” Really? Quality work takes time. Rushed jobs skip critical steps like proper duct sealing and final testing. Typically, 6-8 weeks is standard. Larger projects take 8-10 weeks or more.

Red Flag #6: Front-loaded payment terms

If they want 75% upfront, they have cash flow problems. Standard terms are 50% down, progress payments tied to milestones, final 10-20% after successful testing.

How to Compare Dust Collection System Quotes (Apples to Apples)

Don’t just look at the bottom number. Use this checklist to make sure you’re comparing the same scope of work:

Equipment:

• Exact CFM rating
• Filter type and quantity
• Motor HP
• Construction material (carbon steel vs. stainless)
• Indoor/outdoor rating

Ductwork:

• Total linear feet
• Diameter at each point (this matters more than you think)
• Number and type of hoods
• Material gauge
• Support system

Explosion Protection:

• What type? (venting, flameless, suppression, isolation)
• Based on actual testing or assumptions?
• Annual inspection costs included?

Engineering:

• Is DHA included?
• Who does it? (in-house or subcontracted)
• Are drawings included?
• Do you get the calculations?

Installation:

• Who handles electrical? (some quotes exclude this)
• Building penetrations included?
• Structural supports included?
• Who pulls permits?

Testing:

• What tests are performed?
• Do you get written results?
• What documentation for inspectors?

Warranty:

• Equipment warranty (1 year? 2 years?)
• Installation warranty
• What’s excluded?
• Is service local or do they ship techs from out of state?

Real Projects: What Southwest Shops Actually Paid

Here are real numbers from actual jobs we’ve done. These should give you a solid benchmark for your own dust collection system cost estimate.

Small Welding Shop – Phoenix, AZ

Situation: 4-bay shop, mild steel fabrication, 3 welders

Solution: 3 portable fume extractors with 10′ flex arms

Cost: $18,500 total

Timeline: 1 week (delivered, placed, plugged in, done)

Cabinet Shop – San Diego, CA

Situation: Custom cabinets, 8 machines (saws, planers, sanders), wood dust

Solution: 8,000 CFM baghouse, ducted to all 8 machines, explosion venting

Cost: $142,000

Timeline: 10 weeks from order to final testing

[IMAGE: 0fbc1-d40fe6_ab98391a269340b39cc72a011bc06488mv2.jpg | alt=”Scientific Dust Collectors industrial baghouse system – a typical mid-range dust collection system costing $125,000 to $250,000 installed”]

Metal Fab Shop – Tucson, AZ

Situation: 12 CNC mills/grinders, aluminum dust, 18 employees

Solution: 15,000 CFM cartridge collector, chemical suppression, isolation valves

Cost: $387,000

Timeline: 14 weeks (DHA, complex explosion protection engineering)

Food Processing – Las Vegas, NV

Situation: Flour and sugar processing, multiple production lines

Solution: Two 10,000 CFM collectors, chemical suppression, all stainless

Cost: $465,000

Timeline: 16 weeks (food-grade construction, extensive documentation)

Aerospace Composites – Phoenix, AZ

Situation: Carbon fiber grinding + aluminum machining, separate systems required

Solution: Two 20,000 CFM systems, both with suppression and isolation

Cost: $1,125,000

Timeline: 22 weeks (extensive engineering, phased installation around production)

What We Actually Charge (And Why)

Since we’re being completely transparent about dust collection system cost:

Portable Units: $5,800 – $14,500 per unit delivered to your door

Small-Medium Systems ($60K-$150K range): We typically come in 8-15% higher than the cheapest quote. Why? Because we include:

• Actual engineering (not eyeballing)
• Proper explosion protection (not skipping it)
• Testing and documentation (not hoping nobody checks)

Large Systems ($150K+ range): We’re usually competitive with other contractors who do it right. The lowball quotes disappear when people realize how much is actually involved.

What you get for our pricing:

• Pass-or-free guarantee (if it fails due to our design, we fix it at our cost)
• Lab-tested DHA with actual Kst values (not published data guesses)
• Written commissioning results
• Local service (we’re in Phoenix, not shipping techs from Ohio)

We turn away 30-40% of inquiries because they’re not a good fit or they just want the lowest price. That’s fine—we’d rather build fewer systems that actually work than maximize sales.

Bottom Line: What Should You Budget?

Here’s a rule of thumb that’s held up pretty well:

For every $100,000 in annual revenue your dust-generating operations produce, budget $15,000-$25,000 for proper dust collection.

Examples:

• $500K/year welding shop? → $75K-$125K system
• $2M/year woodworking? → $300K-$500K
• $5M/year aerospace or pharmaceutical? → $750K-$1.25M

If someone quotes you way below that ratio, they’re cutting corners somewhere.

If they quote way above, they’re either overbuilding or padding. Of course there are exceptions, but that ratio holds for most facilities we work with.

The right dust collection system cost comes from actual calculations based on your dust load, production volume, and compliance requirements—not guesses or budget targets.

How to Actually Get This Right

If you want to get compliant without getting ripped off:

Step 1: Get 3 detailed quotes with full breakdowns (not just bottom-line numbers)

Step 2: Use this article to compare apples-to-apples—look at CFM, duct specs, explosion protection, engineering scope

Step 3: Ask the hard questions:

• Who performs the DHA?
• Are drawings included?
• What happens if it fails inspection?
• Is the guarantee in writing?

Step 4: Factor in total cost of ownership over 10 years, not just purchase price

A $90K system that uses 40% less energy than a $75K system pays for itself in 4-5 years, then keeps saving you money for the rest of its life.

Want Real Numbers for Your Shop?

We do free on-site assessments across Arizona, California, Nevada, New Mexico, and Utah.

We’ll come out, measure your actual dust load, calculate real CFM requirements, and give you a fixed-price quote with everything itemized.

No pressure. No sales games. Just straight numbers so you can make an informed decision.

Because the last thing you need is to spend $125,000 on a system that doesn’t work—or get blindsided with $50,000 in “corrections” because the contractor cut corners.

---
