In Stock · Typically Ships 24–48 Hrs
Fume capture,
plugged in this week.

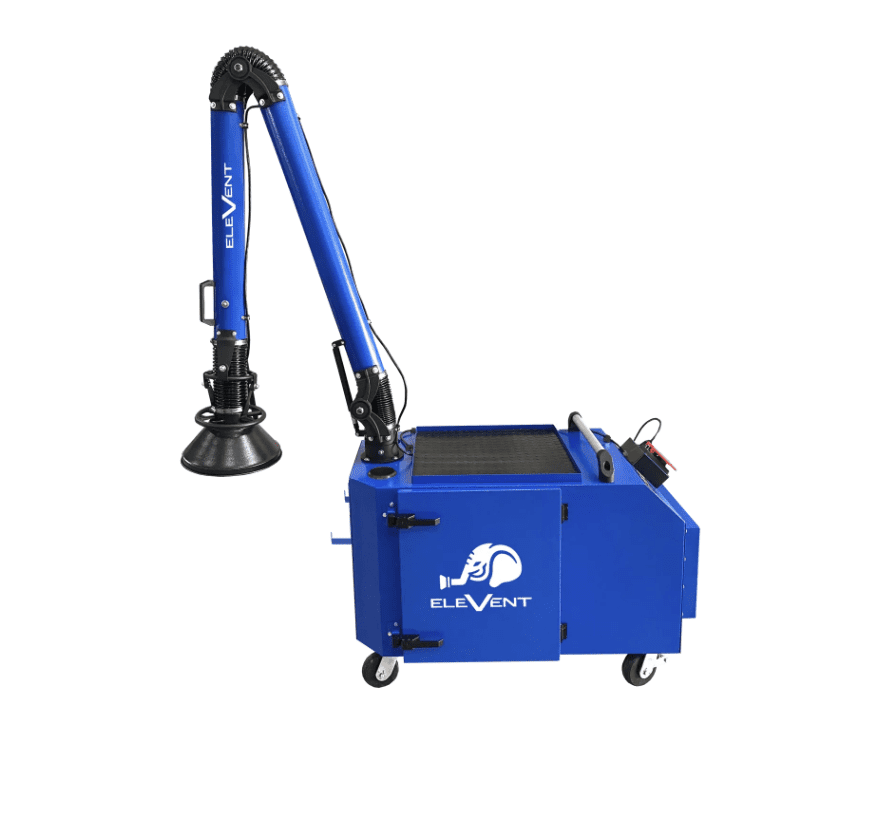

The ELEVENT makes fume capture as easy as one click. 400 CFM. Plugs into any 120V outlet. Typically ships in about 24 to 48 hours from in-stock inventory. When you’re working against a hard date — or a new welder starts Monday — this is the unit.
| Airflow | 400 CFM |
| Filter | MERV 15 cartridge (HEPA optional) |
| Power | 120V · standard shop outlet |
| Includes | 4″ arm, hood, LED light kit |
Typically from stock
AZ · CA · NV · NM · UT · quoted elsewhere
Parts & labor
Self-cleaning capture, at the work surface.
Welding, grinding, and cutting stations generate fume that escapes upward toward the breathing zone. Downdraft tables reverse that — pulling contaminants down through the work surface before they reach the operator. Four sizes from 1,500 to 6,000 CFM, fully assembled, plug-and-run.

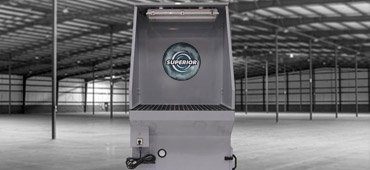

Self-Cleaning Downdraft Tables
Push-button pulse cleaning maintains suction without taking the unit apart. Triple-layer spark protection. 99.97% nanofiber FR cartridge filtration.
| Work surface | 24″×36″ → 48″×96″ |
| Airflow range | 1,500 – 6,000 CFM |
| Filtration | 99.97% nanofiber FR |
| Power | 120V · 230V · 460V |
| Grate options | Fiberglass or steel |
Right for
- Fixed welding bench, one operator
- MIG/TIG mild steel production
- Grinding, deburring, plasma cutting
- Schools and trade-school training labs
Not right for
- Combustible reactive metals (Al, Mg, Ti)
- Workpieces over 8 feet long
- Operators who move across the floor
- 4+ fixed stations — go central
Roll the extractor to where the work is.
Permanent ductwork doesn’t fit every shop. Mobile units roll between welding stations and follow the production schedule. Two production-grade configurations — both on a build cycle (roughly 2 weeks from order).
MFE-1350-SC Self-Cleaning
Heavy production · 1,350 CFM · 460V three-phase
| Airflow | 1,350 CFM |
| Arm config | Single 8″ or dual 6″ |
| Filtration | Self-cleaning + opt HEPA |
| Best for | Continuous production welding |
Right for
- Production stainless or galvanized welding
- 6+ hours/day under the arc
- Shop with 460V three-phase available
- Single high-CFM extractor, dual arms
Not right for
- Light or intermittent welding (use ELEVENT)
- Shops with only single-phase power
- A hard deadline inside 2 weeks (this is a build cycle)

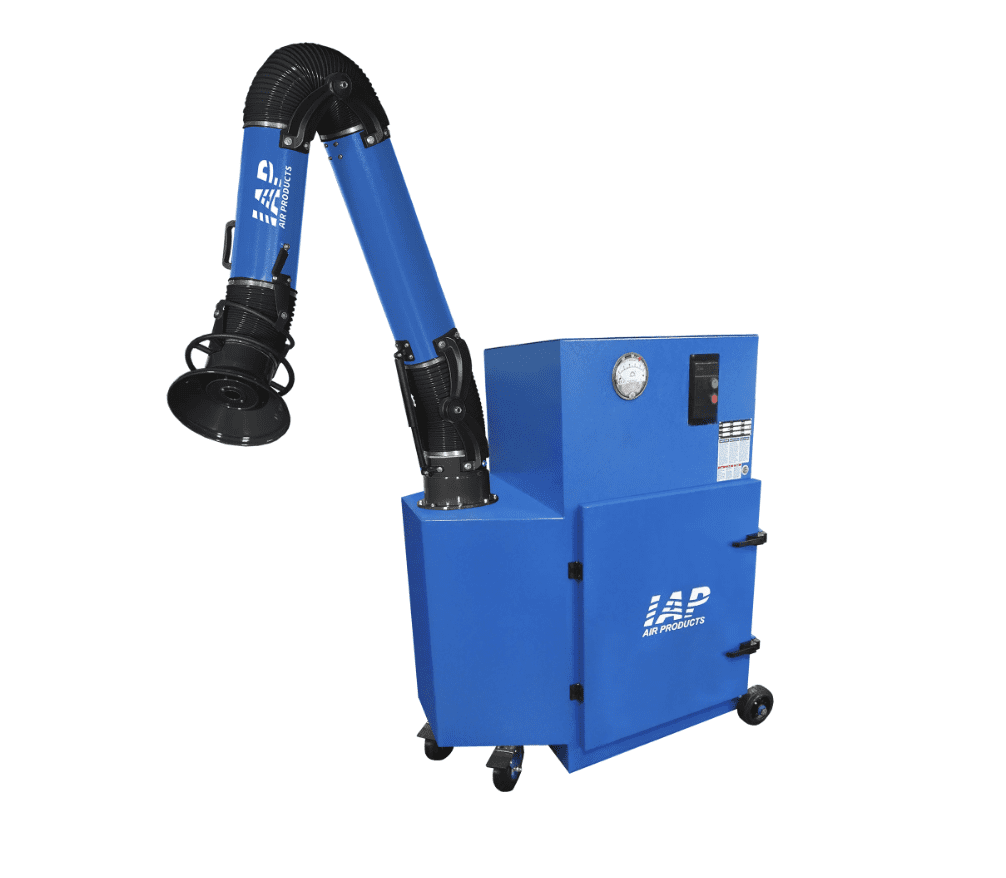

MFE-750 Mobile Extractor
Production workhorse · 750 CFM · 120V single-phase
| Airflow | 750 CFM |
| Arm | Single 6″ bundled |
| Filtration | Disposable or self-cleaning |
| Best for | Daily single-station MIG/TIG |
Right for
- Single-station full-day production
- MIG/TIG mild steel fab work
- Shops without three-phase power
- 2-welder shops with sequential use
Not right for
- Stainless TIG without HEPA upgrade
- Two welders working simultaneously
- A hard deadline inside 2 weeks (this is a build cycle)
“Over 2,000 fume arms in Tennessee stock — one of the largest stocking source-capture suppliers in the country. We handle the application work. They handle manufacturing and same-day fulfillment.”
IAP Air Products is the manufacturer behind our source-capture lineup. Their warehouse keeps the fume arms ready; we keep the relationship — sizing, layout, install guidance, and service across AZ, CA, NV, NM, UT.
Capture at the arc, before it reaches the breathing zone.
Source capture is OSHA’s preferred control method for welding fume — and the most cost-effective. Four configurations stocked in 3″, 4″, 6″, and 8″ diameters, with reach options from 3 feet to 14 feet. Free freight to AZ, CA, NV, NM, UT; shipping applies to other locations.
Source-capture arms are right when
- You already have a central collector — arms drop in at each station
- Operators need overhead reach, not a fixed bench surface
- Multiple welding stations need shared dust collection
- Wash-down or cleanroom environments (stainless option)
Not right when
- You don’t have a collector to connect them to
- The work happens at a fixed bench — use a downdraft table
- The operator constantly moves — use a portable extractor
Hanging Arms
Wall, column, or I-beam mount
Standing Arms
Bench or floor pedestal
Telescopic Arms
Adjustable reach, wall mount
Stainless Steel
304 SS · food, pharma, cleanroom
What buyers ask before placing the order.
When quick-ship isn’t enough.
Production welding cells, full facility build-outs, NFPA 660 compliance, combustible dust — those need engineered systems. Tell us about your floor and we’ll pull the right unit — quick-ship or custom — usually inside a 10-minute call. We’ll also tell you if quick-ship already covers you and an engineered system would be overkill.
