Downdraft Tables vs. Fume Arms: Which Is Right for Your Welding Shop?
Your welders are generating fumes every time they strike an arc. The question isn’t whether to capture them — it’s which system actually fits how your shop works.
Both downdraft tables and fume arms are source capture solutions — they pull welding fumes before they enter the breathing zone rather than relying on general ventilation to dilute what’s already in the air. That’s the right approach regardless of which direction you go. But they work differently, suit different operations, and come with different tradeoffs. Getting this choice wrong costs you either compliance headaches or money you didn’t need to spend. Here’s how to think through it for your specific situation.How Each System Works
Downdraft Tables
Your welder works directly on the table surface, and the filtration happens below. Downdraft tables draw air downward through a perforated work surface, pulling fumes and grinding particulate away from the breathing zone before they can rise. The built-in filter captures the contaminants, and self-cleaning models use a pulse-jet system to knock collected dust into a hopper automatically — no manual filter shaking required. Because everything is contained in one unit — work surface, airflow, and filtration — downdraft tables require no ductwork and no wall connections. You plug them in, position them where you need them, and they work. That self-contained nature is exactly why we specified them for the CAC mobile welding lab — consistent compliance performance at every deployment site with no infrastructure changes required.

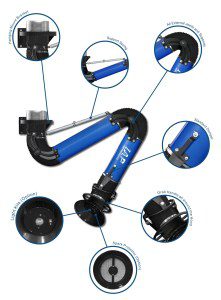

Fume Arms
Fume arms are flexible extraction arms — typically 6 to 10 feet in reach — that mount to a wall, column, or ceiling drop and position a hood close to the arc. The welder adjusts the arm to within 6–10 inches of the work, and the hood draws fumes directly from the point of generation. Arms connect to a central dust collector or a dedicated unit and handle a wide range of part sizes since the extraction point moves with the work rather than being fixed to a table surface.
Where Downdraft Tables Win
Your shop is a good fit for downdraft tables when:- Your welders work on smaller, table-sized parts. Flat plate, structural fabrication under about 3 feet, and grinding work all suit a fixed work surface well. If the part fits on the table, the table captures the fume.
- You need portability. Self-contained downdraft tables can be repositioned as your shop layout changes without modifying ductwork. For mobile environments or facilities that reconfigure regularly, this matters significantly.
- You’re doing heavy grinding. Downdraft tables handle grinding particulate exceptionally well because the airflow pulls debris directly through the surface rather than relying on a hood positioned above the work.
- You want minimal infrastructure. No ductwork runs, no wall penetrations, no connection to a central collector. If your facility lease limits modifications, or you simply want a clean installation, downdraft tables deliver compliance with the smallest footprint.
- You’re outfitting a training environment. Vocational programs and certification labs benefit from the consistent, station-by-station capture downdraft tables provide regardless of where the trailer or classroom is located.
Where Fume Arms Win
Your shop is a better fit for fume arms when:- Your parts are large or awkward. Pipe welding, structural steel, heavy fabrication — anything that doesn’t sit neatly on a table requires the extraction point to come to the work rather than the other way around. A fume arm positioned at the weld joint solves this where a downdraft table cannot.
- Your welders move around the part. Fume arms follow the welder. If your process involves walking around a large weldment and welding from multiple positions, a repositionable arm maintains capture efficiency throughout.
- You’re running multiple processes at one station. A fume arm handles MIG, TIG, and stick from the same mounting point. Swapping processes doesn’t require changing the extraction setup.
- You have high-bay ceiling space. Shops with 20+ foot ceilings and good cross-ventilation can make excellent use of overhead-mounted fume arms that keep the floor clear and don’t occupy any workstation footprint.
- You’re welding stainless steel regularly. Hexavalent chromium fumes from stainless TIG and MIG require aggressive capture. A properly positioned fume arm at 6–10 inches from the arc delivers the CFM needed to pull those fumes before they migrate upward.
The OSHA Factor: Both Systems Must Actually Work
Your source capture system — whether a downdraft table or fume arm — only satisfies OSHA permissible exposure limits if it’s sized and positioned correctly. Undersized CFM, a hood too far from the arc, or a table surface that’s too restrictive for the actual work being done all create compliance gaps that show up during an inspection regardless of what equipment is on the floor. The most common mistakes we see:- Fume arms positioned more than 12 inches from the arc — capture efficiency drops sharply beyond that range
- Downdraft tables undersized for the CFM required by the process — grinding pulls more airflow than light MIG welding, and the table needs to be sized for the heaviest process run on it
- Welders bypassing the system because it’s inconvenient — usually a symptom of poor positioning or a system that wasn’t matched to how work actually flows in the shop
- No consideration for return air vs. exhaust — if your filtered air is returned to the shop, the filtration efficiency rating of the collector matters significantly for regulated contaminants like hexavalent chromium
Cost Comparison
Downdraft tables run higher upfront per station than fume arms in most cases — a self-cleaning downdraft table with integrated filtration typically costs more than an arm connecting to an existing central collector. However, if you’re starting from scratch with no central collection in place, the infrastructure cost of a central system (collector, ductwork, electrical) can flip that equation significantly. The full cost picture for your shop depends on how many stations you’re outfitting, what infrastructure already exists, and whether you need portability. Our 2026 dust collection cost guide breaks down the ranges so you can benchmark before you talk to anyone.When Neither Is the Right Answer on Its Own
Some shops need both. A fabrication facility running a mix of large structural work (fume arms) and grinding/small-part MIG (downdraft tables) often ends up with a hybrid approach where each station is matched to its process. This isn’t overengineering — it’s accurate specification, and it typically produces better compliance results and lower long-term operating costs than forcing one solution across every station. There are also situations where neither downdraft tables nor fume arms are the primary solution:- Very high-volume production welding with dozens of stations running simultaneously may be better served by a central engineered system with dedicated ductwork to each booth
- Robotic or automated welding cells typically use enclosed booths with their own integrated extraction rather than open source capture
- Outdoor or semi-outdoor welding where natural ventilation is adequate and verified — though OSHA still requires demonstrating that PELs are met even in open environments
Side-by-Side Summary
| Downdraft Tables | Fume Arms | |
|---|---|---|
| Best for | Small-to-mid parts, grinding, mobile/portable setups | Large parts, pipe welding, multi-position work |
| Infrastructure needed | Electrical only — no ductwork | Mounting point + connection to collector |
| Portability | High — fully self-contained | Low to moderate — fixed mounting |
| Part size limit | Table footprint | No limit — arm moves to the work |
| Maintenance | Self-cleaning models are low-maintenance | Filter maintenance on connected collector |
| Upfront cost | Higher per unit (includes filtration) | Lower per arm (requires collector) |
Not Sure Which Fits Your Shop?
A 30-minute site assessment tells you exactly which approach fits your processes, your part sizes, and your facility — with real CFM numbers and a compliance picture before you spend anything. Our pass-or-free guarantee means whatever we specify either passes inspection or we fix it at no charge.Or download our NFPA 660 Compliance Checklist to see where your current setup stands.
