Mining & Mineral Processing
Dust collection, wet suppression, and ventilation systems for surface mines, quarries, aggregate plants, underground operations, and mineral processing facilities across the Southwest.
Mining and mineral processing generate some of the highest dust loads in any industry. Crushing, screening, conveying, loading, and processing operations continuously generate respirable dust, and the regulatory framework is among the most stringent. MSHA (Mine Safety and Health Administration) enforces dust exposure limits under 30 CFR Parts 56 and 57 for metal/non-metal mines, while OSHA’s respirable crystalline silica standard (50 μg/m³ PEL) applies at processing plants and operations that fall under general industry jurisdiction.
The Southwest is one of the most active mining regions in the country. Arizona alone is the nation’s leading copper producer and a major producer of sand, gravel, and crushed stone. Nevada’s gold and silver mining operations, New Mexico’s potash and copper mines, Utah’s diversified mineral production, and California’s aggregate and industrial minerals operations all generate dust that must be controlled at the source — through baghouse collectors at crushing and processing plants, wet suppression on haul roads and at transfer points, ventilation in enclosed spaces, and HEPA-filtered cab pressurization for equipment operators.
We work with surface mines, underground operations, quarries, aggregate plants, and mineral processing facilities to design, install, and maintain dust control systems that meet MSHA and OSHA requirements. From high-capacity baghouses at primary crushers to wet suppression at conveyor transfer points, we handle the design, installation, and ongoing maintenance. If your operation runs out of the Reno–Sparks corridor or the northern Nevada mining belt, you’ll find local install and service details on our Reno service page.
Every system we engineer is backed by our pass-or-free compliance guarantee. If your dust collection system doesn’t pass MSHA or OSHA inspection, we fix it at no cost. Installation is handled by an ICAP Certified crew.
Dust Control Challenges in Mining
Mining dust comes from everywhere — every crush, transfer, screen, and load point generates airborne particulate that must be controlled at the source.
Respirable Crystalline Silica
Quartz is present in virtually every type of rock, sand, and mineral ore. When crushed, drilled, blasted, or processed, it generates respirable crystalline silica particles small enough to penetrate deep into the lungs. MSHA’s silica standard and OSHA’s 50 μg/m³ PEL are among the strictest occupational exposure limits in any industry. Achieving and maintaining compliance requires engineered dust controls at every generation point, not just personal protective equipment.
High Dust Loading
Mining dust loads dwarf most other industries. A single primary crusher can generate tons of dust per hour. Screening decks, transfer points, conveyor discharge, truck loading, and stockpile operations each add to the total dust burden. Dust collection systems for mining must be designed for extremely heavy loading, with pre-separation, high-capacity baghouses, and robust construction that can handle abrasive, high-volume particulate without premature wear or filter failure.
Multiple Generation Points
A typical crushing and screening plant has dozens of dust generation points — jaw crusher discharge, cone crusher discharge, screen feed and discharge, every conveyor transfer point, belt feeders, truck dumps, and product loadout. Each point needs source-capture enclosures and either dedicated collection or connection to a central system. Missing even one transfer point allows fugitive dust to escape and contribute to ambient exposure levels.
Harsh Operating Environments
Mining operations run outdoors in extreme conditions — Southwest heat, desert wind, monsoon rain, freezing mountain temperatures. Equipment must withstand thermal cycling, UV exposure, wind-driven abrasion, and occasional water exposure. Dust collector housings, ductwork, fans, and controls must all be designed for the environment, not just the dust. Standard industrial-grade equipment often doesn’t survive in mining applications without modifications.
Conveyor & Transfer Dust
Every conveyor belt transfer point generates a dust plume as material free-falls from one belt to the next. The induced airflow from falling material entrains fine particles and pushes them out through any gap in the enclosure. Effective transfer point control requires sealed enclosures with proper settling zones, dust curtains or impact beds, and extraction connected to a collector or wet suppression at the impact zone.
Haul Road & Stockpile Dust
Unpaved haul roads are often the largest single source of fugitive dust at a mine site. Heavy trucks on dry roads generate massive dust clouds that degrade visibility, accelerate equipment wear, and degrade ambient air quality. Stockpile loading and reclaiming add to the fugitive dust load. Wet suppression (water trucks, spray systems, fog cannons) and chemical dust suppressants reduce emissions from these area sources where point-source collection isn’t practical.
Dust Control Systems for Mining
Mining dust control typically combines dry collection, wet suppression, and ventilation — here’s what we design, supply, and install.
High-Capacity Baghouses
Pulse-jet baghouse collectors sized for the massive airflows mining operations require — from 10,000 CFM at a single crusher to 100,000+ CFM for entire processing plants. Heavy-gauge construction, abrasion-resistant inlets, pre-separation drop-out boxes to remove coarse material before the filter media, and pulse-cleaning systems designed for continuous heavy loading. Bag media selected for the specific mineral — polyester for general rock dust, PTFE membrane for fine silica, and aramid or fiberglass for elevated temperatures.
Cartridge Dust Collectors
Cartridge collectors for enclosed processing buildings, lab sample preparation, bagging operations, and other applications where the dust loading is more moderate than the primary crushing circuit. Nanofiber or PTFE membrane cartridge media provides the high efficiency needed for respirable silica at lower air-to-cloth ratios than standard cellulose/polyester blends.
Wet Dust Suppression
Water spray systems at crusher feeds, conveyor transfer points, screening decks, and truck dumps suppress dust at the source by wetting the material before it becomes airborne. Fog cannons project atomized water mist over stockpiles, loadout areas, and haul roads. Chemical surfactants and dust suppressant additives improve wetting efficiency and reduce water consumption. Wet suppression is used for area sources when ducted collection isn’t feasible.
Transfer Point Enclosures
Engineered enclosures at every conveyor transfer, screen feed, crusher discharge, and belt feeder that contain the dust plume at the source. Designed with proper settling zones, skirting, dust curtains, and connection points for extraction ductwork. Effective enclosure design is the foundation of transfer point dust control — without containment, neither dry collection nor wet suppression can capture the entrained air that carries fine particles out of the material stream.
Cab Pressurization & Filtration
HEPA-filtered positive-pressure cab systems for haul truck operators, loader operators, dozer operators, and other mobile equipment operators who work in high-dust environments. Maintains positive pressure inside the cab so that dust-laden air cannot enter through door gaps, window seals, or HVAC penetrations. Includes pre-filters for coarse dust loading and HEPA final filters for protection against respirable silica. MSHA considers cab filtration an engineering control for reducing operator dust exposure.
Underground Ventilation
Auxiliary fans, ventilation ducting, and filtration systems for underground mining operations — development headings, production stopes, and service areas. Underground ventilation must dilute and remove dust, diesel particulate matter (DPM), blasting gases, and heat. System design accounts for the mine layout, production rate, equipment fleet (diesel vs. electric), and required airflow velocities per MSHA ventilation standards.
Mining Operations We Serve
Crushing & Screening Plants
Primary jaw crushers, secondary cone and impact crushers, tertiary crushers, and multi-deck screening operations. The highest dust generation points at any mine or aggregate operation. Baghouse collectors sized for total plant airflow, with source capture at each crusher discharge, screen feed, and product discharge point.

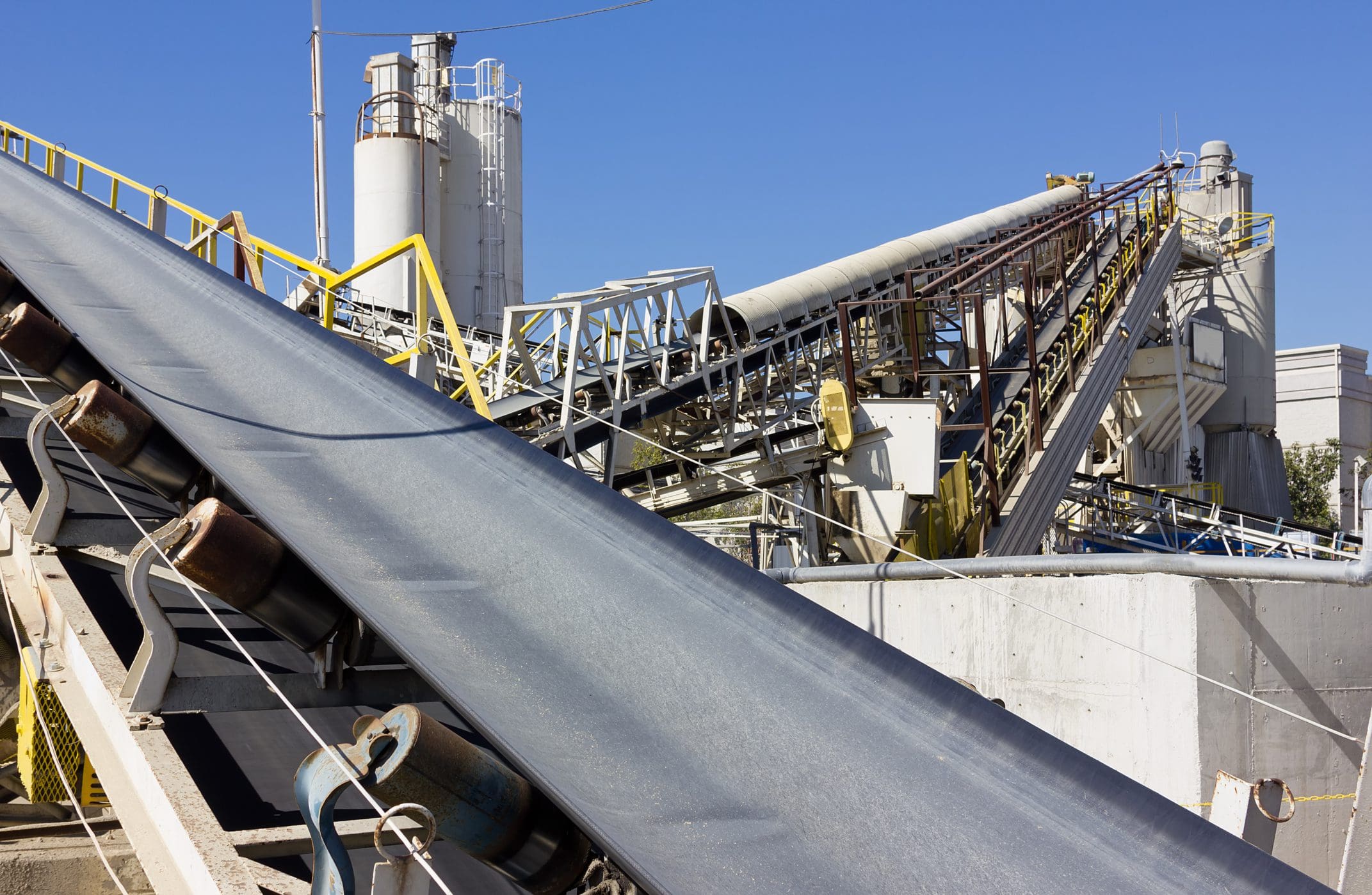

Conveyor Systems
Transfer points, belt feeders, tripper conveyors, and loadout conveyors. Every transfer generates a dust plume from induced airflow and material impact. Sealed enclosures with extraction at each transfer, connected to central or satellite baghouse collectors. Belt cleaning systems and return-side containment to prevent carryback dust.
Surface Quarries & Aggregate
Sand, gravel, and crushed stone operations with pit-to-plant dust control. Drilling, blasting, truck dumping, crushing, screening, washing, stockpiling, and product loadout each require appropriate dust controls. Combination of dry collection at enclosed process points and wet suppression for open-area sources.
Underground Metal/Non-Metal
Copper, gold, silver, and other underground metal mines with drilling, blasting, mucking, hauling, and ore handling operations. Ventilation systems sized per MSHA 30 CFR 57 requirements. Auxiliary fan and duct systems for development headings. DPM control for diesel equipment fleets. Dust suppression at underground transfer and dump points.
Mineral Processing Plants
Grinding mills, flotation circuits, thickeners, dryers, kilns, and product handling in mineral processing facilities. Dry processing generates significant dust during grinding, classification, drying, and packaging. Wet processing (flotation, leaching) generates less dust but still requires ventilation to control chemical vapors and moisture.
Truck Dumps & Loadout
Truck dump hoppers and product loadout stations are high-energy dust generation points — material free-falling from height displaces large volumes of dust-laden air. Enclosed dump pockets with extraction, telescoping chutes for loadout, and wet suppression at the impact zone. Scale-house and loadout operator exposure is a common MSHA compliance concern.
Haul Roads & Stockpiles
Fugitive dust from unpaved haul roads, stockpile loading and reclaim, and general site traffic. Water trucks, fog cannon systems, and chemical dust suppressants reduce emissions from these area sources. Proper road maintenance, speed control, and surface treatment selection depend on traffic volume, climate, and the material characteristics of the road surface.
Tunneling & Development
Mine development, tunnel boring, and shaft sinking operations where drill dust, blast fume, and mucking dust must be controlled in confined, dead-end headings. Force-ventilation with auxiliary fans and ducting to deliver fresh air to the face and exhaust contaminated air. Wet drilling, water sprays, and scrubber systems for heading ventilation.
Regulatory Requirements for Mining Operations
MSHA 30 CFR 56/57
MSHA’s health standards for metal and non-metal mines (30 CFR 56/57) set exposure limits for respirable dust and require engineering controls as the primary means of compliance. Respirable dust sampling, exposure monitoring, and documented control measures are required. Engineering controls must be in place and functioning; reliance on PPE alone is not compliant.
OSHA Respirable Crystalline Silica
OSHA’s silica standard (29 CFR 1910.1053) sets a PEL of 50 μg/m³ as an 8-hour TWA and an action level of 25 μg/m³. It applies at mineral processing plants, ready-mix operations, and other facilities under OSHA jurisdiction. The standard requires exposure assessments, written exposure control plans, engineering controls, medical surveillance for exposed workers above the action level, and housekeeping. Learn more about silica compliance →
MSHA Ventilation Standards
MSHA requires ventilation plans for underground mines that maintain safe air quality for dust, DPM, gases, and temperature. 30 CFR 57 Subpart D specifies minimum air quantities, velocity requirements, and ventilation system design standards. Surface operations also have ventilation requirements for enclosed buildings, processing plants, and equipment cabs. Ventilation systems must be designed, documented, and maintained as part of the mine’s health and safety management program.
EPA & State Air Quality Permits
Mining operations are typically subject to EPA Clean Air Act permitting (Title V or minor source permits) and state-level air quality regulations. Fugitive dust emissions from crushing, screening, conveying, haul roads, and stockpiles must be controlled to meet permit conditions. Dust collectors, wet suppression systems, and enclosures are documented as emission-control equipment in permit applications. Arizona (ADEQ), Nevada (NDEP), California (air districts), New Mexico (NMED), and Utah (UDAQ) each have specific requirements.
Let’s Address Your Mine’s Dust Control Needs
Tell us about your operation — what you’re mining, where the dust problems are, and what your current controls look like. We’ll assess the site, identify the generation points that need attention, and design a system that meets MSHA and OSHA requirements.
Serving mining operations across Arizona, California, Nevada, New Mexico, and Utah.
