Description

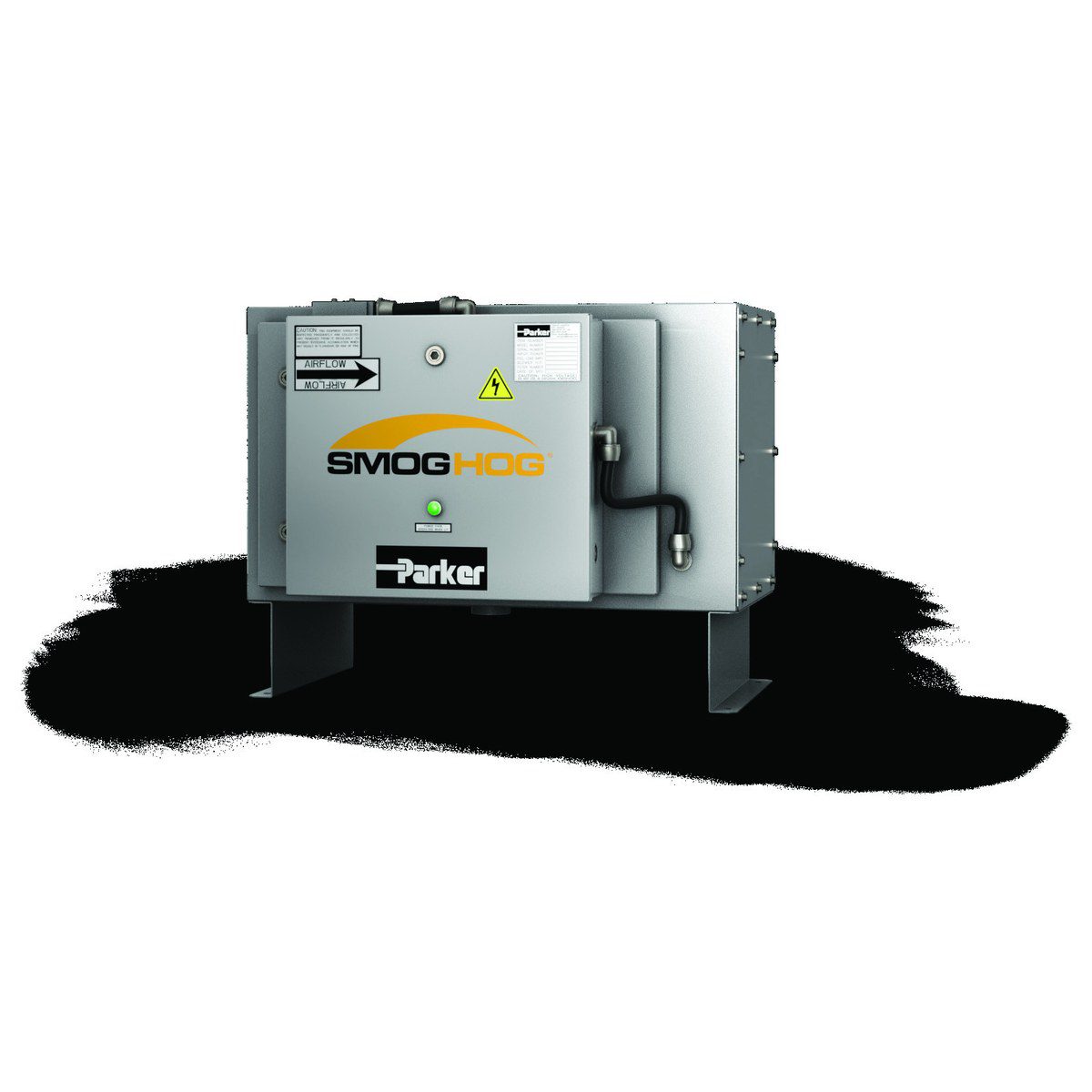

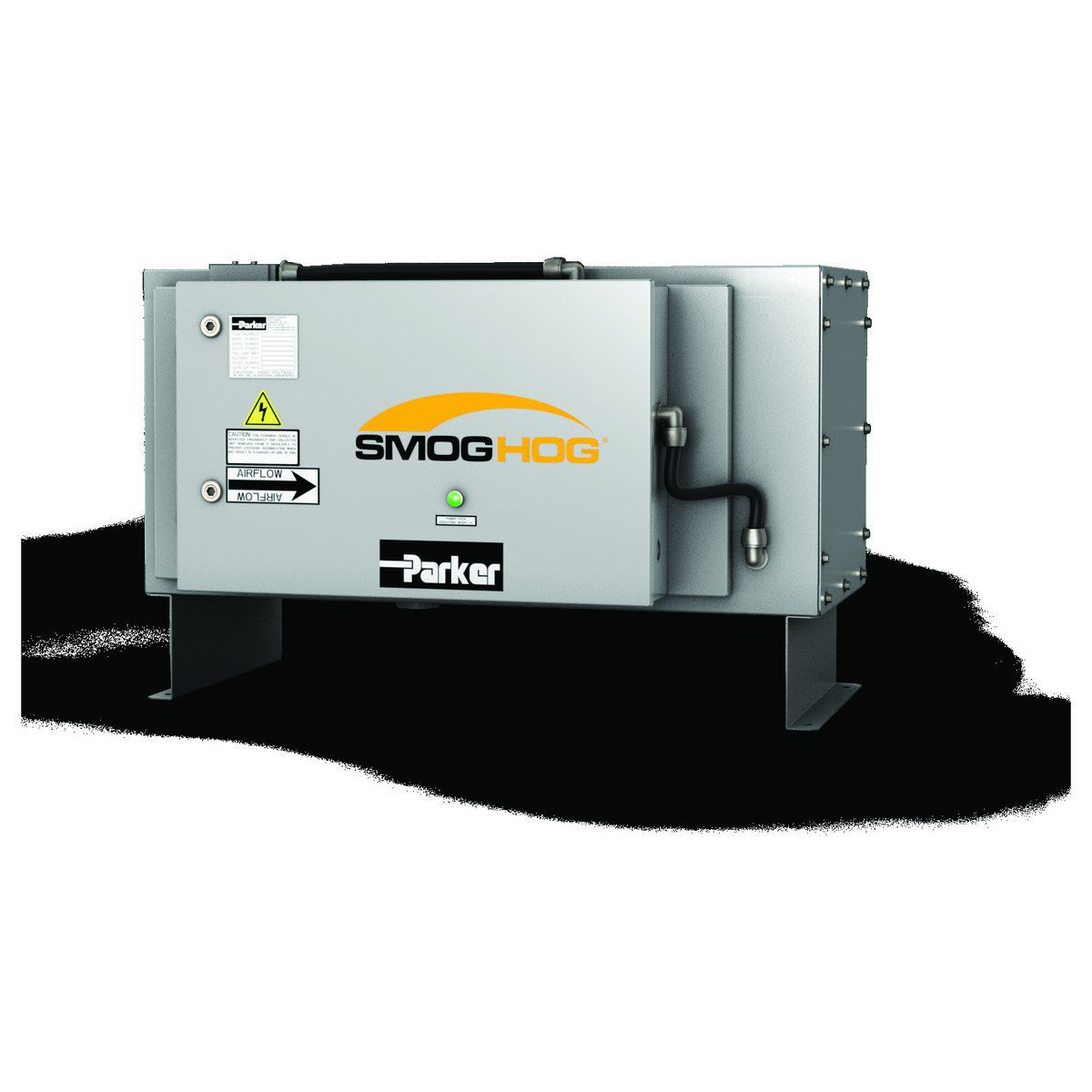

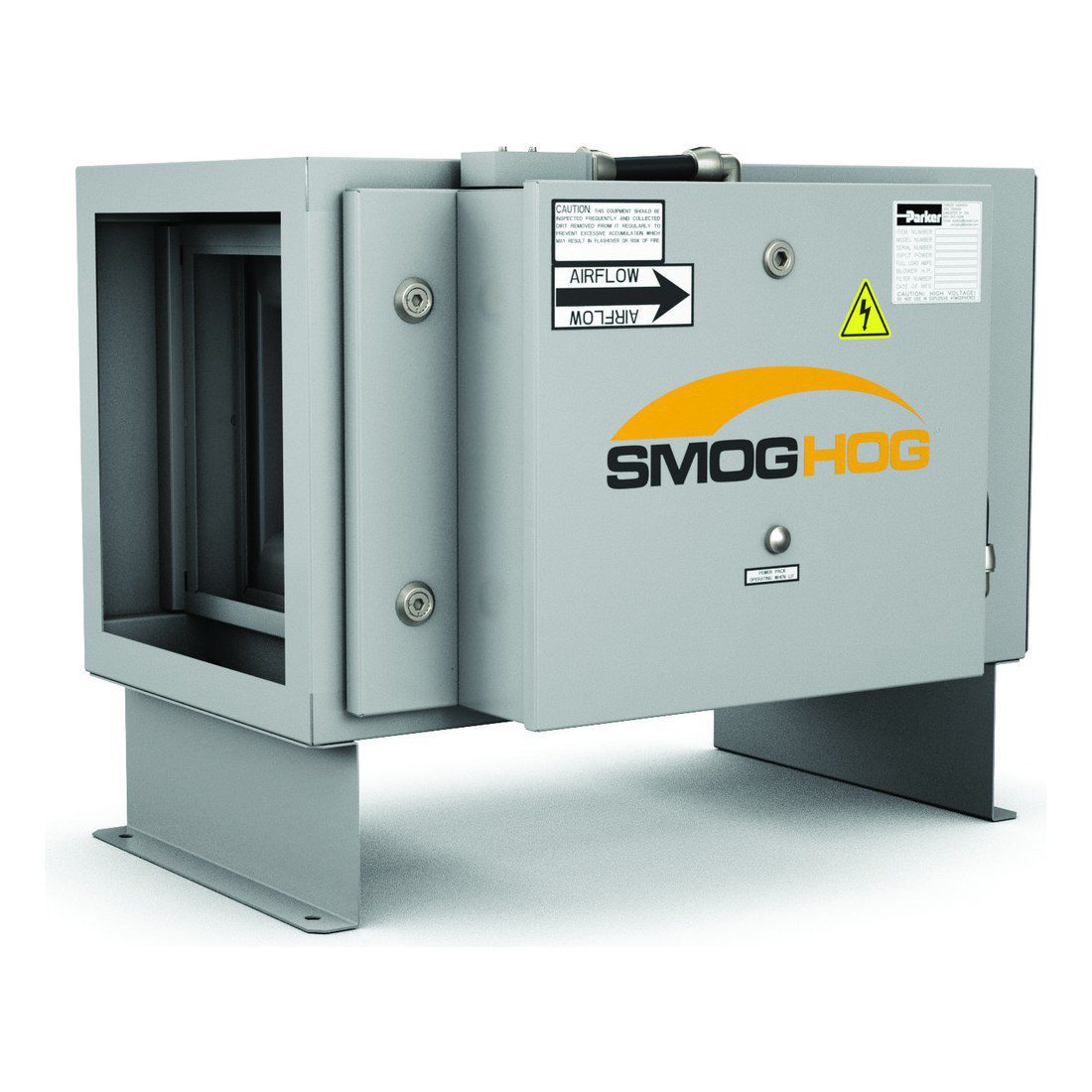

Oil mist coming off a machining center coats everything within twenty feet of it, and eventually that includes the floor people walk on. The MSH mounts right on the machine and takes the mist at the source.
You are buying this for oil mist and coolant smoke straight off a CNC, screw machine or grinder.
We are an authorized SmogHog distributor and we sell this line every week. That means you get the right part number the first time rather than a catalog page and a phone number.
Configure it
Pick your build from the Configuration dropdown above. Every entry is a real factory part number, with horsepower, voltage and filter options already resolved, with the part number shown in brackets so you can check it against a drawing or a previous order. 16 configurations available on this model.
What you get
- A genuine SmogHog unit, built to order at the factory
- Ships LTL freight. We quote the actual freight and confirm it with you before anything leaves the factory, so there is no surprise on the invoice
- The part number confirmed with the factory before we place it
- Replacement filters and spare parts listed on this site so you are not hunting them in two years
Downloads
Who this is not for
- Explosive emissions or an explosive atmosphere. Parker’s MSH owner’s manual says do not use it in explosive atmospheres and do not collect emissions that are explosive.
- No solid, flat place to mount it. The manual says the MSH is designed for machine mounting, on a flat surface such as a machine tool cabinet top or an angle iron support base, and the structure has to safely carry the unit’s full weight.
- A unit nobody will clean. The manual has the cells and filters washed in hot water and detergent as part of normal maintenance. If no one on your crew will own that routine, this is not the right unit.
Not sure which configuration fits your machine or your room? Get a free assessment and we will spec it with you before you spend a dollar.
Parts that fit this collector
Matched to the SmogHog MSH and PCN from the factory parts list. Click any part to go straight to it.
Filters and cells
- Assembly, Ionizer Wire, 10Mil, 9-1/4 in.L (02-10426-0001)
- Filter, AL Mesh, 13.313 x 12.375 x 1.97 in. (33-10116)
- Filter, Mesh, 13-5/16 X 12-1/2 (33-10110)
- Assembly, Spare Ionizer (9W, 10M) (02-0044-S)
- Collection Cell Gpn (02-2339)
- Filter-mesh 18 X 18 3/8 X 7/8 (33-0001)
- Insulator-Cerm, Feed Thru Cell (37-0001)
Drains
Motors and drives
- Base, Motor, Adj, For 56 Frame (23-0001)
- Belt-A43,45 in. (31-0083)
- Blower Assembly, 10-4 Belt Drive 1 (32-0171)
- SHEAVE-4.7 in. PD, 3/4 in. Bore (31-0102)
Electrical
- Triac Speed Control KBMC-13BV (20-10187)
- Switch, Toggle, Spst, 15A@125V (20-0326)
- Power Cord, MSH-05 (03-001505)
- Power Cord, MSH-11 (03-001503)
Mounting and hardware
- Machine Mount Kit, 6 in. (03-10572-6)
- Machine Mount Kit, 8 in. (03-10572-8)
- Kit, Push-button (03-1000)
- Latch-vise Action, 5/32 in. Hex, R (39-0124)
- Spring-contact (36-0014)
