Buyer’s Guide · 2026
Best Compact Welding Fume Extractors for Tight Spaces
You don’t need a big floor or a big number on a box to clear weld fume. You need air pulled hard at the arc, through a tight arm, in a footprint that fits your bay. Here’s how to pick the right one — and how the units shops ask us about actually stack up.
Don’t buy on CFM alone
You’ll see portable extractors sold on one big number: total CFM. Bigger sounds better. For weld smoke it isn’t — and that’s how you end up with a unit that looks strong on paper and still leaves haze over the bench.
Here’s the deal. Weld smoke is light and lifts the second the arc breaks, so you have to grab it at the arc, before it reaches the welder’s face. That’s also what keeps hexavalent chromium and manganese out of his breathing zone and under OSHA limits. A big CFM number measured at the fan, with nothing hooked up, tells you nothing about what’s happening at the weld.
That’s why a small arm beats a big one. A tight 4-inch arm with an oversized hood pulls hard right where you’re welding. A wide 8-inch arm spreads that same air thin and slow — and that headline number is measured at the fan, not the hood. Run it down a loaded filter and a few feet of arm and what reaches the arc is a fraction of the sticker. (More on reach in our welding fume arm sizing guide.)
So don’t ask “how many CFM?” Ask two better questions:
2. How big is the arm?
Straight-shooting manufacturers publish CFM by arm size and filter, because that’s the number that tells you what hits the weld. One inflated “max CFM” with nothing attached doesn’t.
Fits where you work
You’re not picking a compact unit for fun — you’re picking it because floor space is tight and the welder has to keep moving. A good one handles that two ways.
It rolls to the work, so it follows the welder station to station instead of eating a fixed spot on a crowded floor. And when he stays put, a wall-mount option (like the TM500’s) gets the collector off the floor entirely and hands the square footage back. A 16-inch-square base on the wall takes almost nothing from the room. Match the mount to how the work moves and the footprint stops being a problem.
One honest caveat before you commit to an arm at all: if the work mostly sits flat on a bench instead of moving around, a fixed downdraft table can out-capture an arm and free the welder’s hands. We lay out that tradeoff in our downdraft tables vs fume arms guide.
Head to Head
How we compare to Fume Dog
You’re probably weighing us against Fume Dog — a lot of shops do, and for good reason. They make a genuinely good portable, and we’ll tell you straight where it shines.
Fume Dog builds the PT in Georgia out of steel, not plastic, which matters around an arc. It rolls where you need it, converts to wall-mount or a downdraft table out of the box, and uses standard-size replacement filters you can buy anywhere — no proprietary cartridge priced like it’s coated in gold. For one welder running a shift or two a day of MIG, TIG, or stick, it does the job. And we’ll give them this: Fume Dog is one of the honest ones. Their own site tells buyers to ask the diameter of the fume arm — because a big CFM claim through a too-small arm doesn’t mean much.
We just finish the thought they started. The number that matters isn’t CFM at the fan — it’s how much air reaches the arc and how fast it’s moving to get there. Here’s the straight side-by-side, their published numbers next to ours.
| Spec | ELEVENT (ICAP / IAP) | Fume Dog PT |
|---|---|---|
| Airflow | 400 CFM | 1,200 CFM advertised |
| Arm | 4″ × 8′, oversized hood | 8″ × 7′ |
| Motor | 1 HP | 1.5 HP |
| Power | 120V, 1-phase | 120V, 1-phase |
| Build | 14-ga steel | Steel, made in USA |
| Filtration | Mesh + 95% V-bank + optional 99.97% HEPA | MERV 15 nanofiber + air-stream cleaner |
| Footprint | 40.2″ × 23.2″ | 40.5″ × 26″ |
| Converts | Rolling; LED light, tool tray | Rolling / wall / downdraft |
| Availability | Quick Ship — ships fast | Check current lead time |
On paper, Fume Dog’s got triple the airflow — 1,200 against 400. On the floor, that air’s moving through a wide 8-inch arm: slow and spread thin by the time it reaches the weld. The ELEVENT moves less air on purpose, through a tight 4-inch arm and an oversized hood, so it hits hard right where the smoke lifts off the arc. For one welder, capture at the arc beats a bigger number on the box.
Straight answer: want a rugged unit for one welder a shift or two a day? The Fume Dog PT is a fair buy — we’d never tell you different. Want strong capture in a compact footprint that ships this week? The ELEVENT — one of our quick-ship welding fume extractors — is the one we’d put in your bay. Either way, ask those two questions — and ask both sellers their real lead time — before you spend a dollar.
Compact Units, Compared
Three compact units, and where each one fits
All three are rated the honest way — airflow by arm and filter, not one number at the fan. MicroAir builds in Wichita, Kansas; the ELEVENT ships fast from IAP in Tennessee. Match the one that fits your shop, not the one with the loudest sticker.
Quick Ship — In Stock

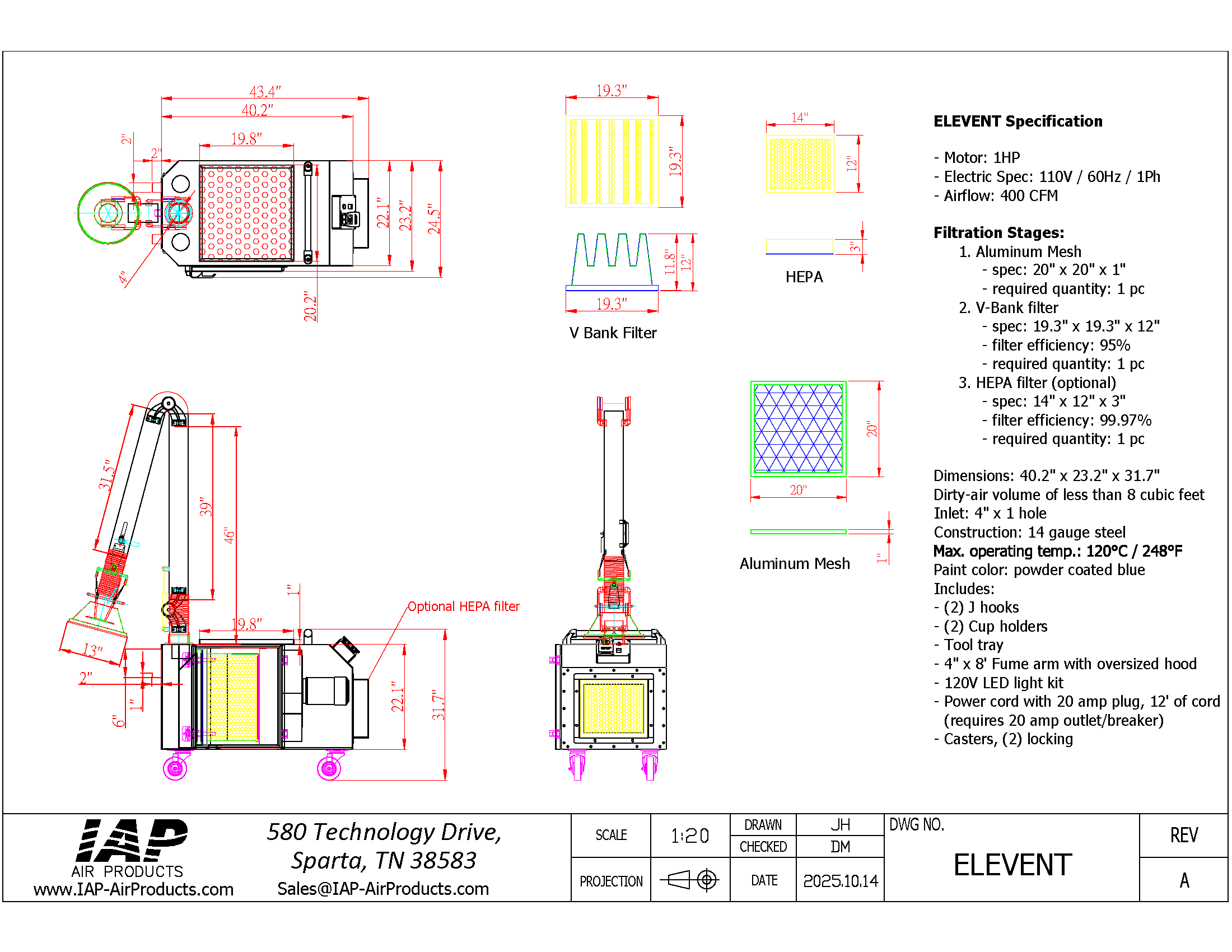

ELEVENT
Your grab-and-go for a single welder who wants it working this week.
- Airflow
- 400 CFM
- Motor
- 1 HP
- Power
- 120V, 1-phase, 20A
- Arm
- 4″ × 8′, oversized hood
- Filtration
- Mesh + 95% V-bank + optional 99.97% HEPA
- Footprint
- 40.2″ × 23.2″
- Build
- 14-ga steel
MicroAir — Recommended
MicroAir TM500
The smallest footprint here, and it can hang on the wall to give your floor back.
- Airflow
- 450 CFM (4″ arm, 95% HEPA); 400 CFM (99.97%); 700 CFM (6″ hose)
- Motor
- 3/4 HP, TEFC
- Power
- 120V, 1-phase, 10 FLA
- Footprint
- 16″ × 16″ · wall-mount option
- Filtration
- 95% (MERV 16) or 99.97% HEPA (MERV 17)
- Weight
- 148 lbs
- Build
- Made in USA (Wichita, KS)
- Noise
- 70–76 dBA @ 6′
MicroAir — Recommended
MicroAir TM1000
When one station has to run hard all shift without stopping to swap filters.
- Airflow
- 1,000 CFM actual
- Power
- 120V standard (2 HP 3-phase optional)
- Filtration
- Dual self-cleaning cartridges, 142 sf each + optional 99.97% HEPA
- Cleaning
- Roto-Pulse — pulses clean, no mid-shift swaps
- Footprint
- 23.5″ × 34.5″
- Arms
- Up to dual 6″/8″ arms
- Build
- Made in USA (Wichita, KS)
- Noise
- 72–76 dBA @ 6′
When a compact unit isn’t the right call
We’d rather lose the sale than sell you a unit that can’t keep up. A compact portable is the wrong tool when you’ve got more than a welder or two, you weld all day every day, or you’re trying to clear haze from a whole shop. One arm can’t cover a busy floor, and chasing it with three portables usually costs more than doing it right once.
It’s also the wrong tool if you grind combustible metals — aluminum, magnesium, titanium, lithium. That dust belongs in a wet collector, not a dry cartridge unit, and it carries fire and explosion rules a portable doesn’t address. If that’s you, start with our NFPA 660 checklist.
Past what a portable can do, an engineered system sized for your facility is the right answer — and it’s closer in price than most people figure. See the ranges in our dust collection system cost guide, then book a free assessment and we’ll size the right setup for your shop.
Questions Buyers Ask
Frequently asked questions
- Does a 400 CFM fume extractor really capture better than a 1,200 CFM unit?
- For one welder, yes. Capture comes from how fast air moves at the hood, not total volume at the fan. A tight 4-inch arm concentrates the air into a fast stream right at the arc; a wide 8-inch arm spreads that same air thin. So a 400 CFM unit on a 4-inch arm with an oversized hood pulls fume off the plume harder than a 1,200 CFM unit on a wide arm. Ask where the CFM is measured and how big the arm is.
- What size welding fume extractor do I need for a single welder?
- For one welder running stick, MIG, or TIG, a compact single-arm portable in the 400 to 700 CFM range, positioned 6 to 10 inches from the arc, handles the job. The right number depends on the arm diameter and filter, so look at the airflow rated for that exact setup rather than the headline figure. If you run more than one station or weld all shift, step up to a higher-capacity unit.
- Can I mount a welding fume extractor on the wall to save floor space?
- Yes. Units like the MicroAir TM500 offer a wall-mount option that lifts the collector off the floor entirely, which frees up a tight bay. A wall mount works well when the welder stays in one spot; if you move between stations, a rolling unit that follows the work is the better fit.
- How close does the fume arm need to be to the weld?
- Position the hood 6 to 10 inches from the arc for best capture. Weld smoke lifts and drifts the moment the arc breaks, so the closer the hood sits to the source, the more fume it pulls before it reaches the welder’s breathing zone. Moving the arm a foot or two away can cut capture sharply, no matter how the unit is rated.
- What’s the difference between a portable fume extractor and an engineered system?
- A portable extractor is a self-contained unit on casters that serves one station and plugs into a standard outlet. An engineered system is sized and installed for your facility, ducting multiple stations or processes to a central collector. Portables are the right call for a single welder or a tight space; once you have several welders, heavy duty cycles, or a whole shop to clear, an engineered system does what a portable can’t.
- Do I need a HEPA filter for welding fume?
- It depends on what you weld. A 95 percent filter handles general mild-steel fume, but stainless and other alloys release finer, more hazardous particles where a 99.97 percent HEPA after-filter is the safer choice. Both the ELEVENT and the MicroAir units offer an optional HEPA stage so you can match the filter to your work.
- How fast can I get a compact welding fume extractor?
- The ELEVENT ships fast as a Quick Ship unit, so a single welder can be capturing fume within days. MicroAir units are matched to your shop and ordered through us, so reach out and we’ll line up the right configuration and timeline. With any other brand, ask the seller for its current lead time before you buy.
