Description

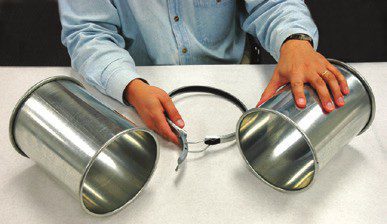

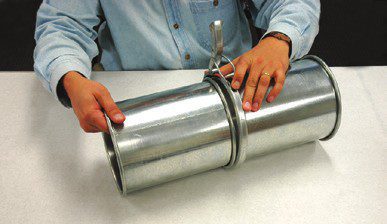

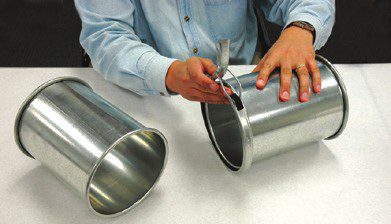

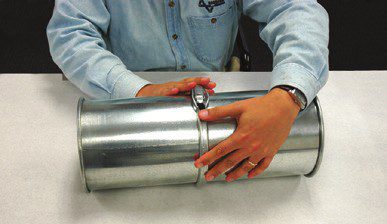

Your Quick-Fit pipe and fittings join with this one clamp. It closes over the rolled edges of two components, compresses the seal over both beads in a full 360°, and locks with a retaining pin so the handle cannot pop open.
What you get
- Galvanized clamps ship with a galvanized bridge pin, stainless clamps with a stainless pin
- 3 in. to 6 in.: small bridge pin, 3/8 in. wide seal
- 7 in. to 11 in.: large bridge pin, 1/2 in. wide seal
- 12 in. to 24 in.: large bridge pin, 5/8 in. wide seal

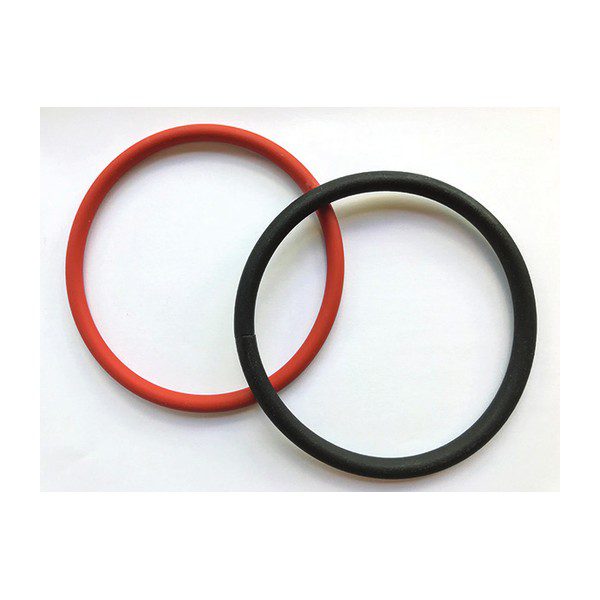

- Nitrile seal: rated 158°F continuous, 194°F intermittent
- Silicone seal: rated to 400°F and stays flexible at -60°F, with strong resistance to weather aging and ozone
- ePTFE seal: not degraded by common chemicals across the 0 to 14 pH range, rated to 600°F, industrial use only
- Metal-to-metal contact at every joint through the clamp ears and rolled edges
Before you order
- Order one clamp for each pipe, fitting or component in your run.
- Made in the USA by Nordfab in Thomasville, NC. Nordfab is ISO 9001:2015 and ISO 14001:2015 certified.
When this is not the right part for you
- ePTFE seals are for industrial use only. Nordfab states they are not for food, drug, cosmetic or medical device manufacturing, processing or packaging.
- Quick-Fit is a clamp-together system and is not sold as airtight. If your process needs a sealed duct system, ask us about Nordfab QFS before you order.
- Planning a whole system rather than a few parts? Book a free assessment and talk to us about a custom system.
Specifications from the Nordfab Ducting Product Reference 2026.
