Description

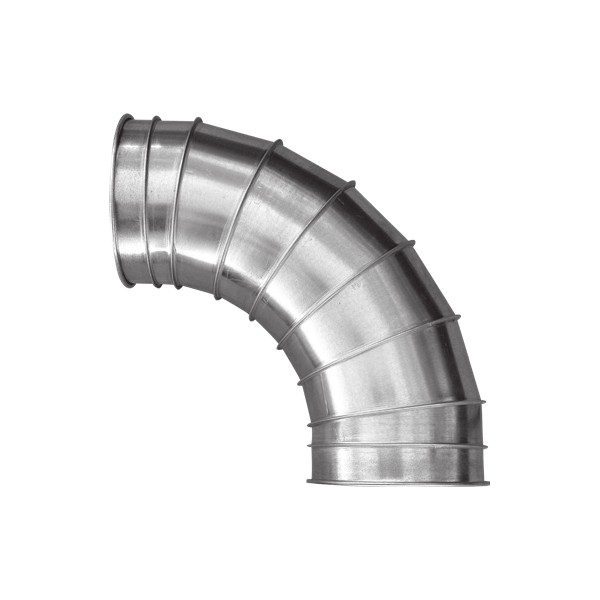

Your direction changes clamp in just like straight pipe. Galvanized sizes 3 in. to 7 in. are press formed, and 8 in. and larger are segmented gores. Stainless 3 in. to 6 in. are tubed from 14ga stainless.
What you get
- Standard centerline radius: 1.0 for galvanized 3 in. to 7 in., 1.5 for everything else
- Galvanized: 24ga 3 in. to 7 in., 22ga 8 in. to 12 in., 20ga 13 in. to 24 in.
- Stainless: 14ga tubed 3 in. to 6 in., 22ga 7 in. to 12 in., 20ga 13 in. to 24 in.
- Galvanized is ASTM A653 G90 steel with a recommended max service temperature of 390°F. 304 stainless meets ASTM A240 and is rated to 1100°F.
Before you order
- Quick-Fit clamps are sold separately. Plan on one clamp per component in your order.
- Plan a Quick-Fit Sleeve at most 90s so the run lines up.
- Made in the USA by Nordfab in Thomasville, NC. Nordfab is ISO 9001:2015 and ISO 14001:2015 certified.
When this is not the right part for you

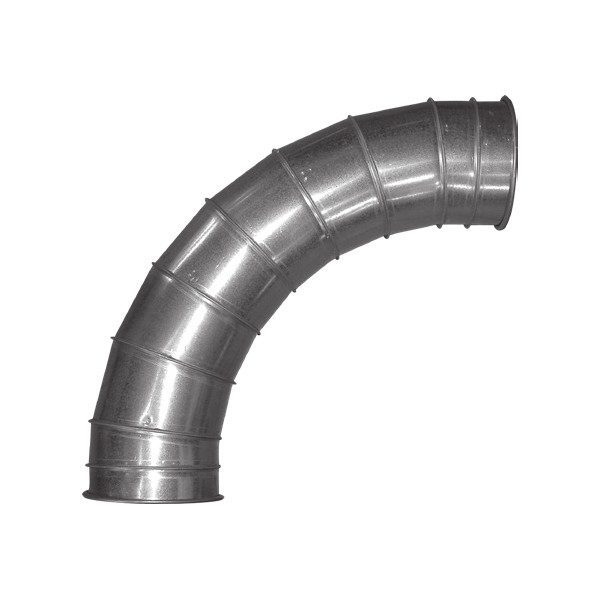

- Moving abrasive material at high velocity? Look at the Long Radius Elbow or ask us about heavier gauges, which wear longer in the turn.
- Need a flanged elbow or a size over 24 in.? Request a quote.
- Planning a whole system rather than a few parts? Book a free assessment and talk to us about a custom system.
Specifications from the Nordfab Ducting Product Reference 2026.
