Description

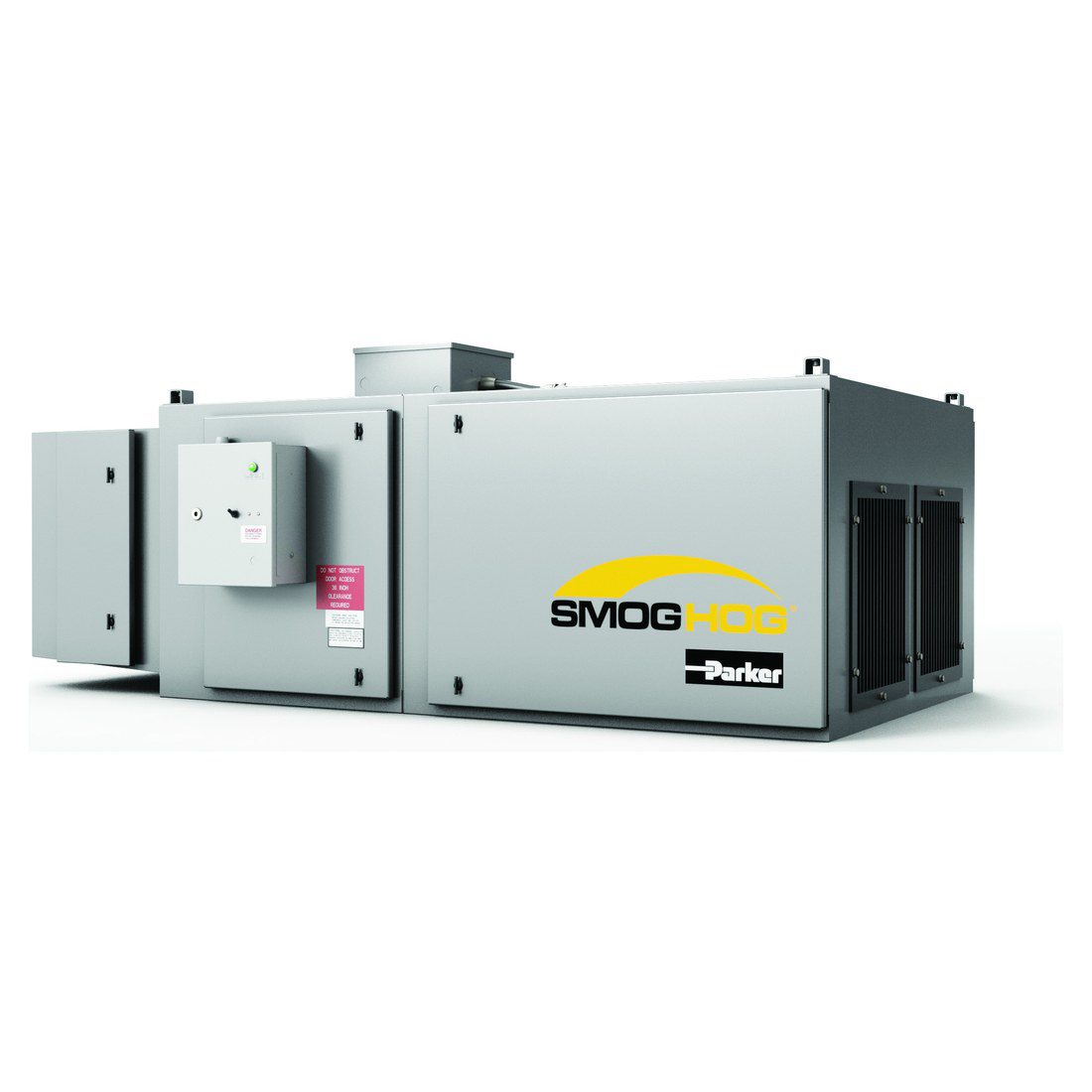

When one machine is not the problem and the whole room is, the SGN is the high volume end of the electrostatic line. Same washable cell principle, far more air.
You are buying this for high volume oil mist and smoke across a full cell or department.
We are an authorized SmogHog distributor and we sell this line every week. That means you get the right part number the first time rather than a catalog page and a phone number.
Sized with your order
Your pulley drive set, inlet collar, and drain loops or bottles are matched to your airflow and static pressure rather than fixed into the part number. Give us your airflow and static pressure when you order and we set them with the factory and ship them with the machine.
Configure it
Pick your build from the Configuration dropdown above. Every entry is a real factory part number, with horsepower, voltage and filter options already resolved, with the part number shown in brackets so you can check it against a drawing or a previous order. 3 configurations available on this model.
What you get
- A genuine SmogHog unit, built to order at the factory
- Ships LTL freight. We quote the actual freight and confirm it with you before anything leaves the factory, so there is no surprise on the invoice
- The part number confirmed with the factory before we place it
- Replacement filters and spare parts listed on this site so you are not hunting them in two years
Downloads
Who this is not for
- A hot air stream. Parker’s SGN owner’s manual says the air stream temperature should not exceed 120°F.
- Explosive emissions, an explosive atmosphere or flammable vapors. The manual says do not use it in explosive atmospheres, do not collect emissions that are explosive, and keep flammable materials and vapors, such as gasoline, away from the unit.
- A unit nobody will clean. The manual says to inspect the unit frequently and remove contaminants to prevent excessive accumulation. The collector cells are washed with hot water and detergent. If no one on your crew will own that routine, this is not the right unit.
Not sure which configuration fits your machine or your room? Get a free assessment and we will spec it with you before you spend a dollar.
Part numbers for this unit
Every configuration of this unit lives on this page. If you came in with a part number from a quote, a drawing, or an old nameplate, match it against the list below, then pick that configuration above.
SGN322, SGN322-FB14L, SGN322-NB74L, SGN322-PB14L
Parts that fit this collector
Matched to the SmogHog SGN from the factory parts list. Click any part to go straight to it.
Filters and cells
- Filter, Coalescing, Oil Mist, SG (33-10062-0001)
- Filter-mesh STAIN.STL. (SG) (33-0158)
- Cell Bottom Endplate Assembly (02-3319)
- Cell Top Endplate Assembly (02-3318)
- Insulator Assembly, Ionizer Feed Through (02-0749-SP)
- Insulator, Cell (Triangular), B (37-0061)
- Plate-Cell, Narrow (hot) (10-0157)
- Plate-Cell, Wide (ground) (10-0158)
- Rail-Ionizer, 10 Wire SG Bottom (18-0670)
- Rail-Ionizer, 10 Wire SG Top (18-0674)
- Unicell SG (wide Spaced Cell) (02-10421-0001-S)
