Vehicle Exhaust Extraction Systems

A diesel engine running inside a closed service bay can exceed OSHA’s carbon monoxide permissible exposure limit within minutes. Even with bay doors partially open, CO and nitrogen dioxide levels regularly reach unsafe concentrations during cold starts and extended idle. A vehicle exhaust extraction system captures 100% of those fumes at the tailpipe — before they ever reach the breathing zone. It’s not optional equipment. It’s a life safety system.

We design and install IAP ViperVex vehicle exhaust extraction systems for auto dealerships, fire stations, fleet maintenance facilities, heavy truck shops, and vocational programs across Arizona, California, Nevada, New Mexico, and Utah. Every system we install meets OSHA 29 CFR 1910.1000 air contaminant requirements — and we back it with our pass-or-free compliance guarantee.

Why Exhaust Extraction Can’t Wait

Carbon monoxide is odorless, colorless, and accumulates fast in enclosed service bays. A single gasoline engine at idle can exceed OSHA’s 50 ppm CO permissible exposure limit in a closed 1,500 sq ft bay within minutes. Diesel engines — which produce higher CO concentrations plus nitrogen dioxide and particulate matter — are worse. Cold starts are the most dangerous: a diesel engine runs rich and produces its highest emission concentration in the first 60–90 seconds.

The symptoms of chronic low-level CO exposure — headaches, fatigue, reduced concentration — are often attributed to long work days, not workplace air quality. By the time a tech or firefighter connects symptoms to their environment, they’ve had years of exposure.

Source capture at the tailpipe is the only engineering control that reliably keeps exposure in the breathing zone below OSHA limits. General dilution ventilation (exhaust fans in the ceiling or walls) reduces ambient levels but doesn’t prevent peak exposure near the vehicle — exactly where technicians are working during the highest-emission period of engine startup.

Hose Reels vs. Hose Drops vs. Rail Systems — Choosing the Right Configuration

Spring-retract hose reels work for most auto dealerships, quick lubes, and independent shops with fixed service bay positions. Each bay gets its own ceiling-mount reel. The technician pulls the hose to the tailpipe, connects the nozzle, and the hose auto-retracts when the vehicle drives away. Simple, reliable, and cost-effective for vehicles parked in a predictable position.

Hose drops with spring balancers are the low-profile alternative — no reel drum on the ceiling, just a balanced drop point. Works well for shops with overhead cranes, low ceiling clearance, or where aesthetics matter. The balancer holds the hose at a convenient working height and floats it back up when released.

Motorized reels are required once hose diameter or length exceeds what a spring mechanism can reliably handle. If you’re servicing Class 8 trucks, transit buses, or heavy construction equipment, you need motorized. IAP motorized reels handle hoses up to 8″ diameter and 33′ long — more than enough for any vehicle currently on the road.

Overhead rail systems solve the variable-position problem. Fire stations are the most common application: apparatus parks wherever it stops, and the rail lets the hose reel travel the full bay length to meet the tailpipe. Rail systems cost more than fixed-point reels but are the only practical solution for bays where vehicle position changes daily.

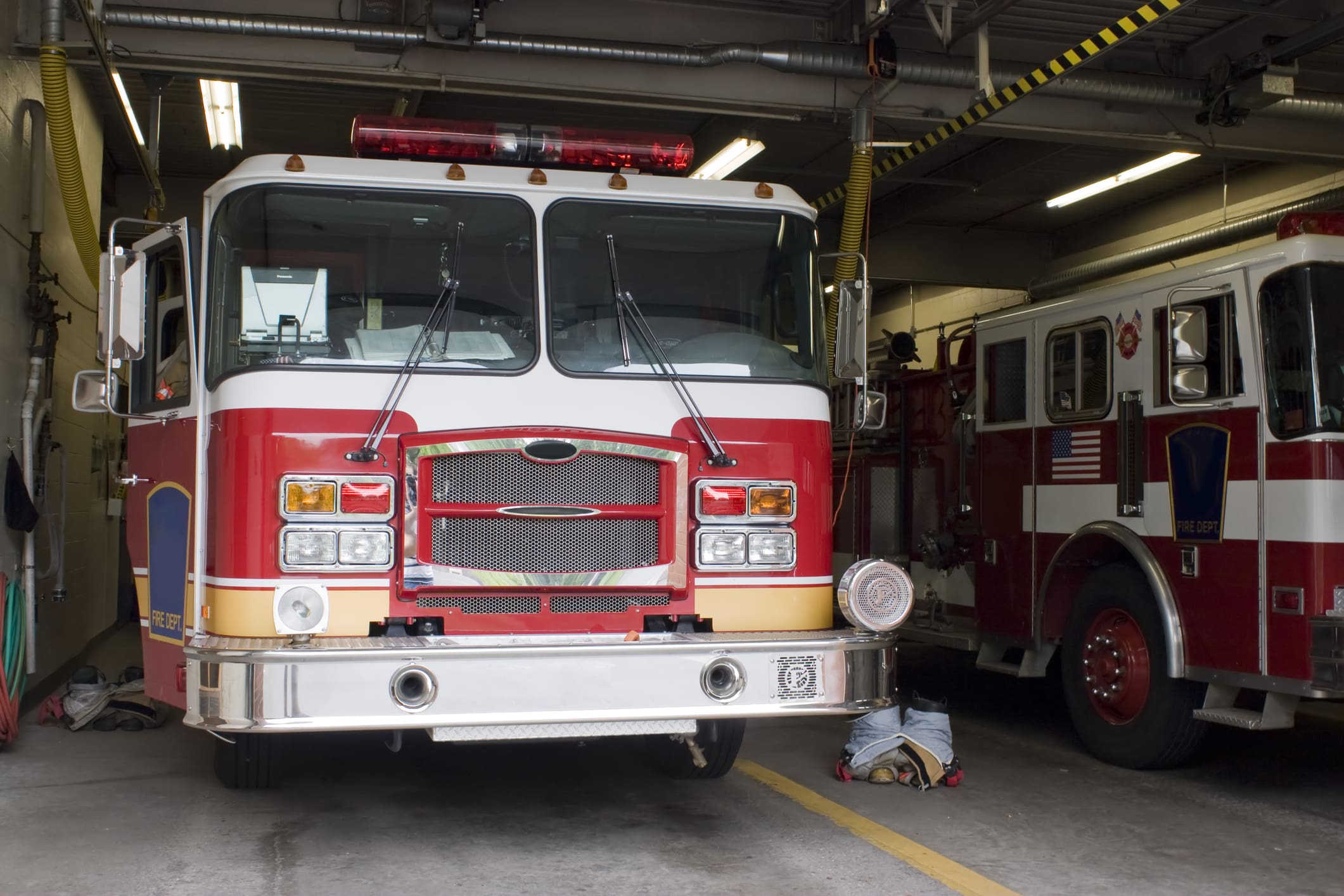

Fire Station Vehicle Exhaust Extraction

Fire departments have the most urgent need for diesel exhaust extraction and, in many cases, the most straightforward path to funding it. Firefighters face diesel exhaust exposure inside their own stations on top of the combustion products they encounter on scene — a compounding occupational cancer risk that’s now well-documented.

NFPA 1500, the standard on fire department occupational safety, recommends source capture in all apparatus bays. Several states now mandate it in new construction and major renovations. California’s SB 1044 (Firefighter Cancer Prevention Act) specifically addresses diesel exhaust exposure in stations.

A typical 4-bay fire station installation includes:

• 4 overhead rail or motorized hose reel systems — one per bay
• Magnetic or quick-disconnect nozzles that release cleanly when the apparatus pulls out
• Auto-disconnect at the bay door so the system releases even if the driver forgets
• Automatic fan start triggered by exhaust pressure or ignition interlock
• High-temperature hose rated for continuous 650°F service
• Roof-mounted exhaust fan with backdraft damper

The auto-disconnect is critical for emergency response. When a call comes in, the driver hits the door and goes — the nozzle releases cleanly as the apparatus clears the threshold. Zero delay, nothing dragged into the street. The system resets automatically for the next use.

FEMA AFG Grants for Fire Station Exhaust Extraction

Most fire departments don’t fund vehicle exhaust extraction from operating budgets. The FEMA Assistance to Firefighters Grant (AFG) program covers health and safety equipment — including exhaust extraction systems — and has funded thousands of station installations nationwide.

We help departments through the documentation process: site assessment, system design, detailed specifications, and cost estimates formatted for grant applications. We also schedule installations to meet AFG spending deadlines. State and local programs in Arizona, California, Nevada, New Mexico, and Utah may offer additional matching funds — we can identify what’s available in your jurisdiction.

Fleet Maintenance & Heavy Truck Shops

Municipal fleet yards, transit authorities, and commercial truck service centers deal with the widest vehicle variety — passenger cars through 40-foot buses, gasoline through heavy diesel. Vehicle exhaust extraction for these facilities needs to handle multiple tailpipe configurations, high-temperature exhaust, and simultaneous use across many bays.

Design considerations specific to fleet shops:

• Vertical exhaust stacks: Semi trucks and heavy equipment often have vertical stacks — custom nozzle adapters or dual-port connections handle these configurations
• High-CFM fan capacity: A 10-bay shop with 8 simultaneous connections needs 8,000–10,000 CFM total system capacity
• Durability ratings: Fleet techs use equipment harder than dealership techs — we spec IAP commercial-grade reels and high-abrasion hose for high-cycle environments
• Below-grade service pits: Exhaust extraction at the tailpipe doesn’t protect the technician working in a pit below the vehicle — pit ventilation is a separate system requirement

Comparing Vehicle Exhaust Extraction Brands

Your facility manager or safety director will likely ask about other brands during the evaluation. Here’s an honest overview:

We’re not locked to any single brand. If your facility has existing Plymovent or Nederman infrastructure you want to expand, we can work with it. For most new installations in our service area, IAP ViperVex delivers the right combination of product range, lead times, and price for the application.

Vehicle Exhaust Extraction System Costs — Southwest Market Pricing

Transparent pricing for the facilities we serve:

• Single-bay spring hose reel system: $2,500–$5,000 installed
• Single-bay motorized hose reel (heavy duty): $4,500–$8,000 installed
• Single-bay overhead rail system: $5,000–$9,000 installed
• 4-bay fire station (rail systems, auto-disconnect): $25,000–$45,000 installed
• 10-bay fleet shop (mixed reels, fan, ductwork): $35,000–$65,000 installed
• Auto dealership service department (6–12 bays): $18,000–$50,000 installed

All pricing includes equipment, ductwork, exhaust fans, nozzles, and professional installation. For a full breakdown of how we price air quality systems, see our cost guide. Financing options are available — municipalities and fire departments frequently use lease-to-own structures spread over 3–5 years.

OSHA Requirements for Vehicle Exhaust in Enclosed Facilities

The primary regulation is OSHA 29 CFR 1910.1000 — Air Contaminants. The permissible exposure limits that apply directly to vehicle exhaust:

• Carbon monoxide (CO): 50 ppm TWA (8-hour time-weighted average)
• Nitrogen dioxide (NO₂): 5 ppm ceiling — cannot be exceeded at any point during the shift
• Diesel particulate matter: No specific OSHA PEL, but classified as a potential occupational carcinogen — OSHA cites under the General Duty Clause when exposure controls are absent or inadequate

Additional standards depending on your facility type:

• ASHRAE 62.1: Ventilation rates for vehicle repair garages — 1.5 CFM per sq ft or 100% source capture
• NFPA 30A: Motor fuel dispensing and repair garages — ventilation requirements
• NFPA 1500: Fire department occupational safety — recommends source capture in all apparatus bays
• Cal/OSHA Title 8: California requirements, which are more stringent than federal OSHA in several exposure categories

Source capture at the tailpipe is the engineering control OSHA expects to see. General dilution ventilation doesn’t meet the standard because it can’t prevent peak exposures near the vehicle during engine startup — exactly when CO and NOx are highest and exactly where the technician is standing to make the connection. Every system we install comes with compliance documentation. Our pass-or-free guarantee means if an OSHA inspector flags the system, we fix it at no charge.
